The New Hotness

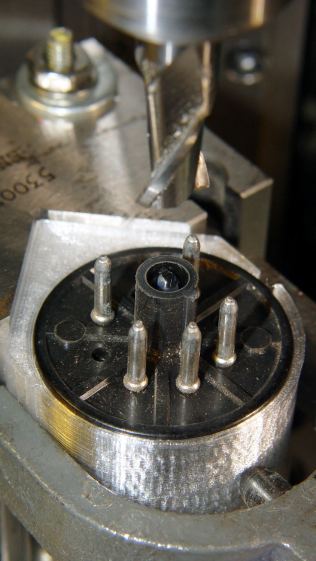

A larger version of the V-block clamp accommodates the 35 mm = 1-3/8 inch octal base of a 5U4GB Full-Wave Vacuum Rectifier tube:

The evacuation tip nearly touched the inside end of the base spigot!

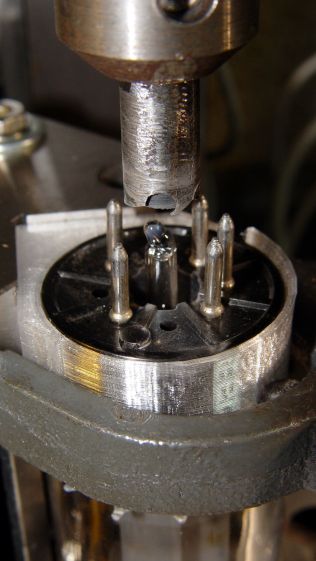

I had to cut the shaft and half the body off the shell drill in order to fit it into the space above the tube base and below the chuck:

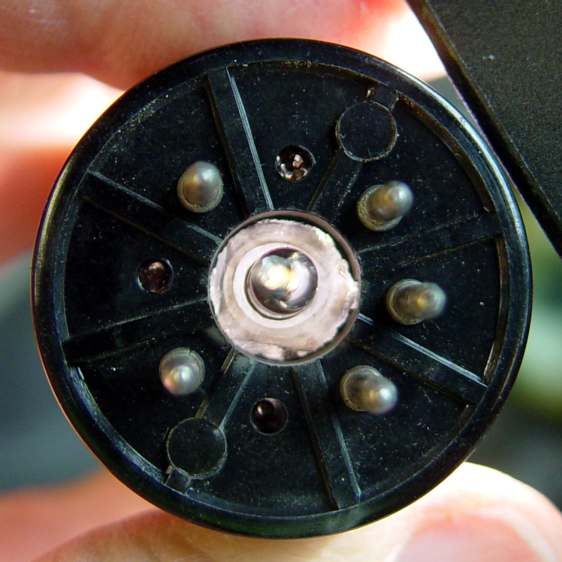

A slightly larger shell drill would still fit within the pin circle, but the maximum possible hole diameter in the base really isn’t all that much larger:

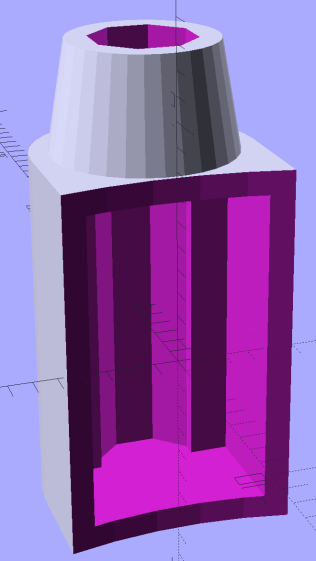

The getter flash covers the entire top of this tube, so I conjured a side light for a rectangular knockoff Neopixel:

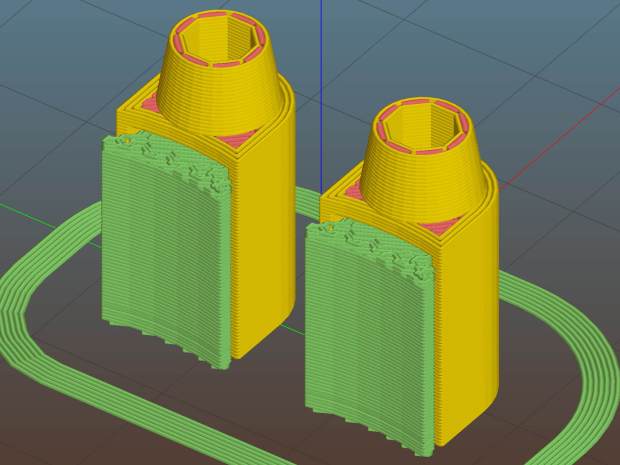

There’s no orientation that doesn’t require support:

A little prying with a small screwdriver and some pulling with a needlenose pliers extracted those blobs. All the visible surfaces remained undamaged and I cleaned up the curved side with a big rat-tail file.

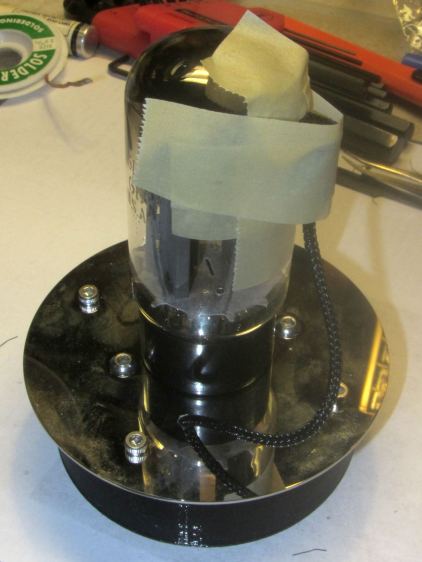

I wired the Arduino and Neopixels, masked a spot on the side of the tube (to improve both alignment and provide protection from slobbered epoxy), applied epoxy, and taped it in place until it cured:

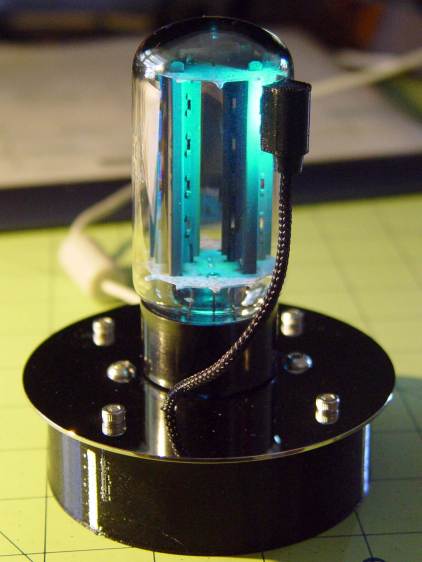

The end result looks great:



It currently sends Morse code through the base LED, but it’s much too stately for that.
