These blocky brackets hold a pair of LED light strips in the recess under our 1955-era kitchen cabinets, to let the light cover the entire counter:

The large holes are for drywall screws into the cabinet, the smaller ones for 2.5 mm SHCS holding the strips to the brackets. I drilled those little holes out and installed 4-40 brass inserts; this being a one-off installation, the source code doesn’t include that change.

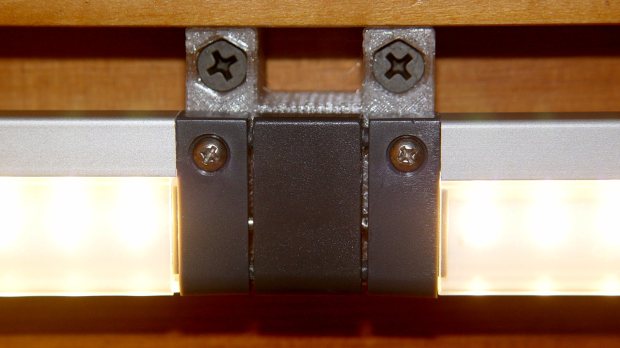

There’s not much to see after they’re installed:

Under-cabinet light bracket - center joiner — Under-cabinet light bracket – center joiner

I’d hoped to swap the ends of the strip to power it from the right end, but the guts aren’t symmetric and you can’t just flip it end-for-end:

eShine LED Under-cabinet light - disassembled — eShine LED Under-cabinet light – disassembled

That’s an add-on unit without the IR proximity sensor circuitry and power switch, but with the same overall layout. You take it apart by pressing the obvious latch on one of the endcaps, then gently prying the plastic away from the aluminum extrusion, taking care not to wreck the coaxial socket. Reassemble in reverse order.

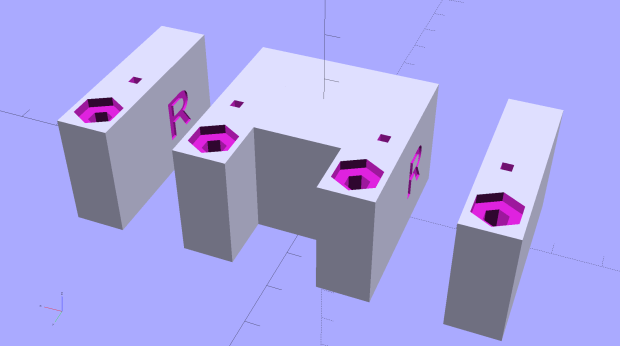

The OpenSCAD source code as a GitHub Gist:

	// Mounting brackets for eShine under-counter LED lights
	// Ed Nisley KE4ZNU December 2016

	//- Extrusion parameters must match reality!

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	//———-
	// Dimensions

	MountHeight = (1 + 3/16) * inch – 5.0; // under-cab space – base thickness

	THREADOD = 0;
	HEADOD = 1;
	LENGTH = 2;

	WoodScrew = [4.0,8.3,41]; // 8×1-5/8 Deck screw
	WoodScrewRecess = 2.0;

	LEDScrew = [2.0,4.5,8.0]; // M2.5×10 SHCS

	LEDScrewOffset = [1.0,8.2,0]; // hole offset from center point
	JoinerLength = 18.1; // joiner between strips

	EndBlock = [11.0,28.5,MountHeight]; // mounting block size for ends

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides);
	}

	// End mounting block with proper hole offsets

	module EndMount(Side = "L") {

	LSO = [((Side == "L") ? 1 : -1)*LEDScrewOffset[0],LEDScrewOffset[1],LEDScrewOffset[2]];

	difference() {
	union() {
	cube(EndBlock,center=true);
	translate([0,1.5*WoodScrew[1],0])
	cube(EndBlock,center=true);
	}

	translate(LSO + [0,0,-EndBlock[2]])
	rotate(180/4)
	PolyCyl(LEDScrew[THREADOD],2*EndBlock[2],4);

	translate([0,(EndBlock[1] + 1.5*WoodScrew[1])/2,-EndBlock[2]])
	rotate(180/6)
	PolyCyl(WoodScrew[THREADOD],2*EndBlock[2],6);

	translate([0,(EndBlock[1] + 1.5*WoodScrew[1])/2,(EndBlock[2]/2 – WoodScrewRecess)])
	rotate(180/6)
	PolyCyl(WoodScrew[HEADOD],WoodScrewRecess + Protrusion,6);

	translate([((Side == "L") ? 1 : -1)*EndBlock[0]/2,0,0])
	rotate([90,0,((Side == "L") ? 1 : -1)*90])
	translate([0,0,-2*ThreadThick])
	linear_extrude(height=4*ThreadThick,convexity=3)
	text(Side,font=":style=bold",valign="center",halign="center");
	}
	}

	module MidMount() {
	XOffset = (JoinerLength + EndBlock[0])/2;

	union() {
	translate([XOffset,0,0])
	EndMount("L");

	cube([JoinerLength,EndBlock[1],EndBlock[2]] + [2*Protrusion,0,0],center=true);

	translate([-XOffset,0,0])
	EndMount("R");
	}
	}

	//———-
	// Build them

	translate([0,0,EndBlock[2]/2]) {
	translate([-(JoinerLength + 2*EndBlock[0]),0,0])
	EndMount("L");


	MidMount();

	translate([(JoinerLength + 2*EndBlock[0]),0,0])
	EndMount("R");
	}

view raw

Kitchen Light Bracket.scad

hosted with ❤ by GitHub
