Having hacked back the end of the USB gooseneck extension, a tweak of the COB LED heatsink mount for my desk lamp produces a smaller version for a 1.8 W LED:

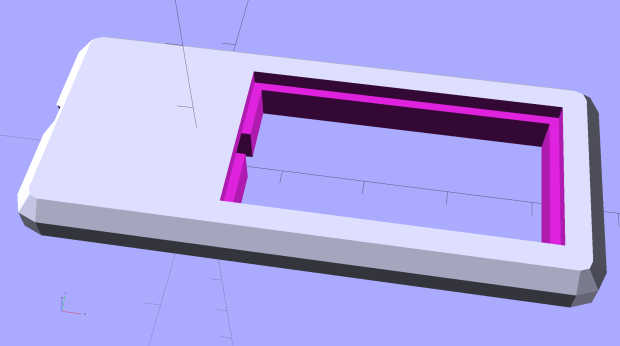

Chip On Board Heatsink Mount - Bandsaw Lamp - solid model — Chip On Board Heatsink Mount – Bandsaw Lamp – solid model

That fits half of a random heatsink, bandsawed just to the far side of the middle fin and milled flat.

Ream out the 5 mm hole with a #8 drill for a snug fit around the gooseneck, jam gooseneck in place, dab epoxy on the corners of the recess, mash the heatsink in place, solder wires to LED, smear epoxy on the aluminum backplate, clamp while curing:

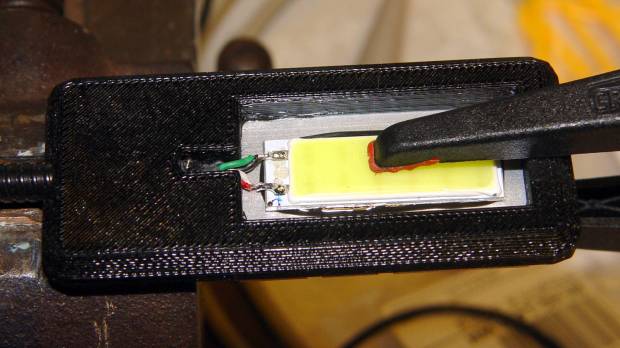

USB Gooseneck - LED assembly — USB Gooseneck – LED assembly

And it looks pretty good, if I do say so myself:

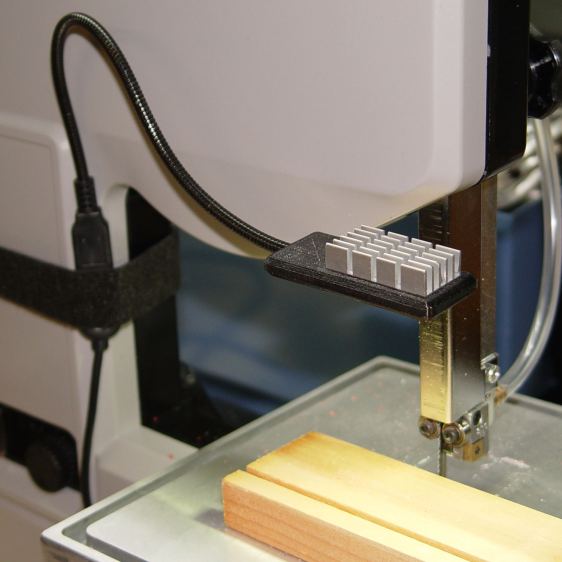

USB Gooseneck - on bandsaw — USB Gooseneck – on bandsaw

The hook-n-loop tape holding the cable to the bandsaw gotta go, but should suffice until I conjure a better mount.

The alert reader may wonder how a 9 V COB LED runs from a 5 V USB cable with nary a trace of a voltage booster to be seen. Well, that’s not really a USB cable any more; I paralleled the red+white and black+green wires for lower resistance, then hacked a 9 VDC power supply into an old USB hub:

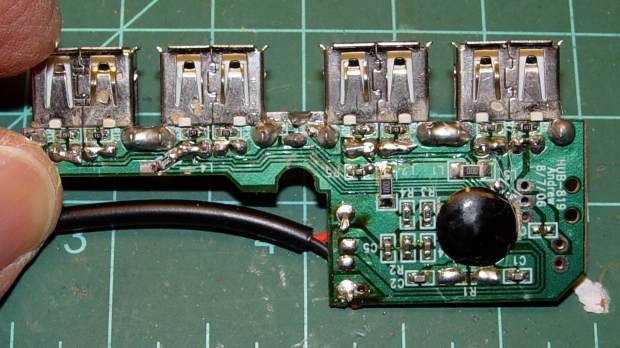

Hacked USB hub - PCB mods — Hacked USB hub – PCB mods

I ripped out the upstream USB plug, hotwired the 9 V supply where the 5 V USB wires used to be, soldered jumpers on the downstream sockets to short the outer two pin pairs together, razor-knifed the power leads going into the epoxy-blobbed USB controller, and declared victory:

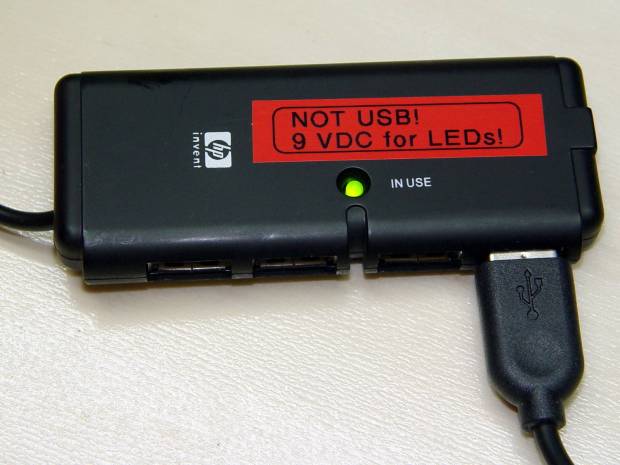

Hacked USB hub - in use — Hacked USB hub – in use

Admittedly, that “In Use” LED runs a bit brighter now.

I have a few other tools on that bench in need of LED lights; when I build ’em, they can all plug into this hub. No reason to invent new connectors & cables & all that. It may need a power switch.

Turns your stomach, eh?

The OpenSCAD source code as a GitHub Gist:

	// Chip-on-board LED light heatsink mount for desk lamp
	// Ed Nisley KE4ZNU December 2015
	// February 2017 – rectangular COB, smaller heatsink

	Layout = "Show"; // Show Build

	//- Extrusion parameters must match reality!

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	//———————-
	// Dimensions

	ID = 0; // for round things
	OD = 1;
	LENGTH = 2;

	Gooseneck = [3.0,5.0,15.0]; // anchor for end of gooseneck

	COB = [30.0,11.0,2.5]; // Chip-on-board LED module

	Heatsink = [37.1,19.2,10.0]; // overall
	HeatsinkBase = 2.0; // solid base below fins

	HSLip = 1.0; // width of lip under heatsink

	BaseMargin = 22ThreadWidth;
	BaseRadius = 3*ThreadThick + Gooseneck[OD]/2; // defines slab thickness
	BaseSides = 2*4;

	Base = [(Gooseneck[LENGTH] + Gooseneck[OD] + Heatsink[0] + 2*BaseRadius + BaseMargin),
	(Heatsink[1] + 2BaseRadius + 2BaseMargin),
	2*BaseRadius];

	echo(str("Slab thickness: ",Base[2]));

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,
	h=Height,
	$fn=Sides);
	}

	//– Lamp heatsink mount

	module Lamp() {

	difference() {
	translate([(Base[0]/2 – BaseRadius – Gooseneck[LENGTH]),0,0])
	hull()
	for (i=[-1,1], j=[-1,1])
	translate([i(Base[0]/2 – BaseRadius),j(Base[1]/2 – BaseRadius),Base[2]/2])
	sphere(r=BaseRadius/cos(180/BaseSides),$fn=BaseSides);

	translate([(Heatsink[0]/2 + Gooseneck[OD]), // main heatsink recess
	0,
	(Base[2] + Heatsink[2]/2 – HeatsinkBase)])
	cube((Heatsink + [HoleWindage,HoleWindage,0.0]),center=true);

	translate([(Heatsink[0]/2 + Gooseneck[OD]),0,HeatsinkBase]) // lower lip to shade lamp module
	scale([1,1,2])
	cube(Heatsink – [2HSLip,2HSLip,0],center=true);

	translate([0,0,Base[2]/2]) // goooseneck insertion
	rotate([0,-90,0]) rotate(180/8)
	PolyCyl(Gooseneck[OD],Base[0],8);

	translate([0,0,Base[2]/2 + Gooseneck[ID]/2]) // wire exit
	rotate([180,0,0])
	PolyCyl(Gooseneck[ID],Base[2],6);

	translate([Gooseneck[OD],0,(Base[2] – HeatsinkBase – Protrusion)/2]) // wire slot
	rotate([180,0,0])
	cube([2*Gooseneck[OD],Gooseneck[ID],(Base[2] – HeatsinkBase + Protrusion)],center=true);

	}

	}

	//———————-
	// Build it

	if (Layout == "Show") {
	Lamp();
	}

	if (Layout == "Build") {

	}

view raw Chip On Board Heatsink Mount.scad hosted with ❤ by GitHub
