  • Beckman DM73 Circuitmate: RIP

    I’d added Mad Phil’s trusty Circuitmate to the tool kit I carry along to Squidwrench:

    Beckman DM73 - new ground clip
    Beckman DM73 – new ground clip

    Over the last few months it became increasingly erratic, eventually got to the point where slight pressure on the case would blank the display, and finally didn’t turn on at all. Yes, I replaced the batteries.

    So I took it apart:

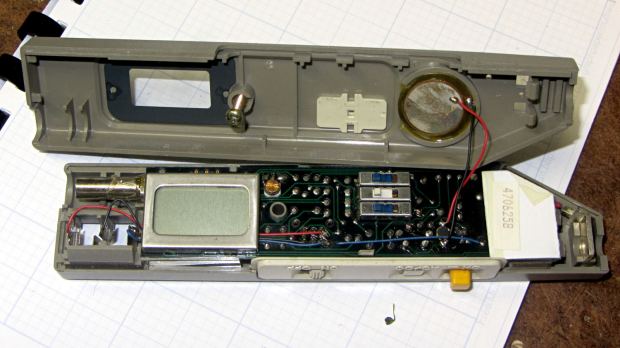

    Beckman DM73 Circuitmate - case open
    Beckman DM73 Circuitmate – case open

    Nothing seemed particularly broken and, even after resoldering all the joints, it continued to not work at all:

    Beckman DM73 Circuitmate - PCB
    Beckman DM73 Circuitmate – PCB

    If you want to try your hand at instrument rehabilitation, let me know.

    [Update:It’s back from the dead !]
