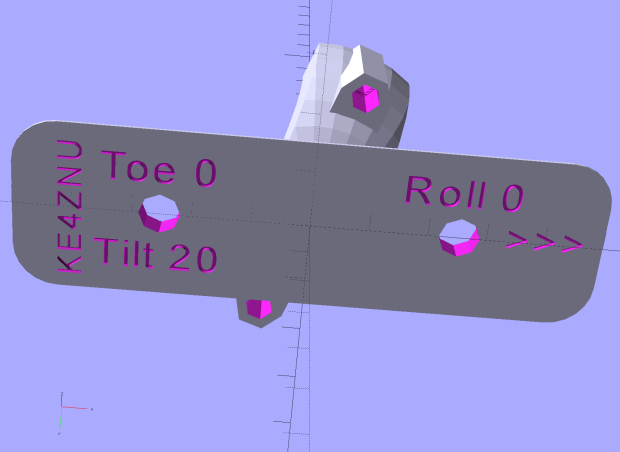

The flashlight mount need not be symmetric after applying all the rotations, so recording how it’s aimed and which end goes forward seemed appropriate:

Fairing Flashlight Mount - Mount Annotation — Fairing Flashlight Mount – Mount Annotation

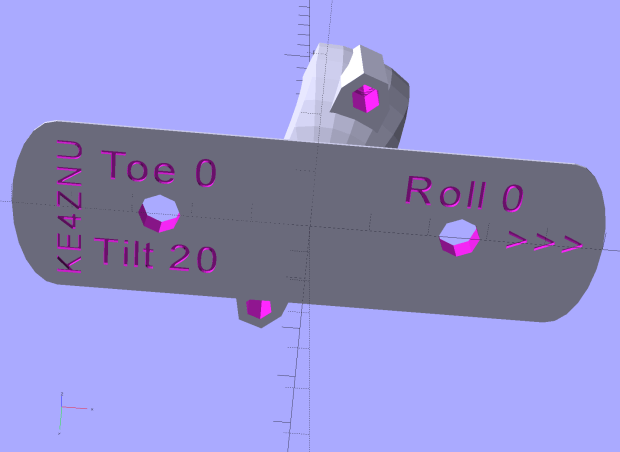

Optionally, with rounded ends just for pretty:

Fairing Flashlight Mount - Mount Annotation - rounded — Fairing Flashlight Mount – Mount Annotation – rounded

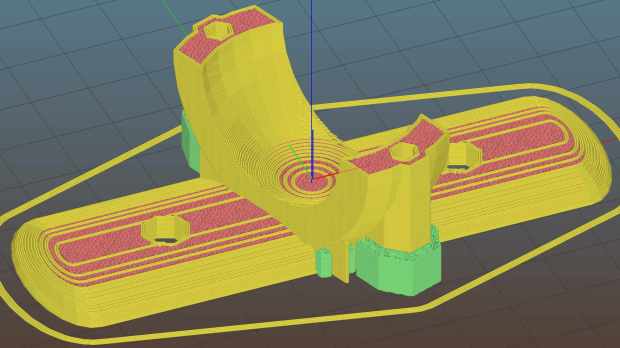

Because the rounding comes from resized spheres, the plate gets a ridge along the top to (maybe) lock the nylon screws / wing nuts in place:

Fairing Flashlight Mount - Mount - rounded — Fairing Flashlight Mount – Mount – rounded

Or discourage them from turning, which would be OK, too. After the second tightening, they don’t seem to come loose, so this may be overthinking the problem.

All in all, they look pretty good in cyan PETG:

Fairing Flashlight Mount - rounded — Fairing Flashlight Mount – rounded

Believe it or not, that’s aimed so the top edge of the beam is roughly horizontal to keep the hot spot out of oncoming traffic. They’re plenty bright, even on the “low power” setting.

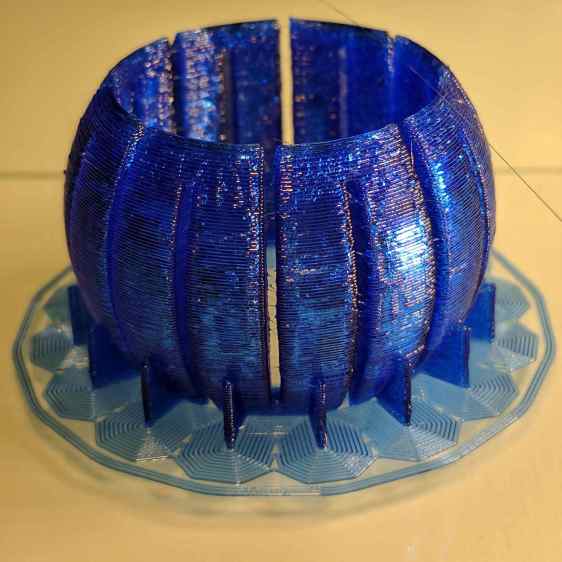

The flashlight mounting balls produce a decorative brim that ought to be useful for something:

Maybe earrings?

The OpenSCAD source code as a GitHub Gist:

	// Tour Easy Fairing Flashlight Mount
	// Ed Nisley KE4ZNU – July 2017
	// August 2017 –

	/* [Build Options] */

	FlashName = "AnkerLC40"; // [AnkerLC40,AnkerLC90,J5TactV2,InnovaX5]

	Component = "Plates"; // [Ball, BallClamp, Mount, Plates, Bracket]

	Layout = "Build"; // [Build, Show]

	Support = false;

	MountSupport = true;

	/* [Extrusion] */

	ThreadThick = 0.25; // [0.20, 0.25]
	ThreadWidth = 0.40; // [0.40]

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.01; // [0.01, 0.1]

	HoleWindage = 0.2;

	/* [Fairing Mount] */

	ToeIn = 0; // inward from ahead
	Tilt = 20; // upward from forward (M=20 E=15)
	Roll = 0; // outward from top

	Shift = 0; // Finagle Constant for support ribs

	//- Screws *c

	/* [Hidden] */

	ID = 0;
	OD = 1;
	LENGTH = 2;

	/* [Screws and Inserts] */

	ClampInsert = [3.0,4.2,8.0];

	ClampScrew = [3.0,5.9,35.0]; // thread dia, head OD, screw length
	ClampScrewWasher = [3.0,6.75,0.5];
	ClampScrewNut = [3.0,6.1,4.0]; // nyloc nut

	/* [Hidden] */

	F_NAME = 0;
	F_GRIPOD = 1;
	F_GRIPLEN = 2;

	LightBodies = [
	["AnkerLC90",26.6,48.0],
	["AnkerLC40",26.6,55.0],
	["J5TactV2",25.0,30.0],
	["InnovaX5",22.0,55.0]
	];

	//- Fairing Bracket
	// Magic numbers taken from the actual fairing mount

	/* [Hidden] */

	inch = 25.4;

	BracketHoleOD = 0.25 * inch; // 1/4-20 bolt holes

	BracketHoleOC = 1.0 * inch; // fairing hole spacing
	// usually 1 inch, but 15/16 on one fairing

	Bracket = [48.0,16.3,3.6 – 0.6]; // fairing bracket end plate overall size
	BracketHoleOffset = (3/8) * inch; // end to hole center

	BracketM = 3.0; // endcap arc height
	BracketR = (pow(BracketM,2) + pow(Bracket[1],2)/4) / (2*BracketM); // … radius

	//- Base plate dimensions

	Plate = [100.0,30.0,6*ThreadThick + Bracket[2]];
	PlateRad = Plate[1]/4;

	RoundEnds = true;

	echo(str("Base plate thick: ",Plate[2]));

	//- Select flashlight data from table

	echo(str("Flashlight: ",FlashName));
	FlashIndex = search([FlashName],LightBodies,1,0)[F_NAME];

	//- Set ball dimensions

	BallWall = 5.0; // max ball wall thickness
	echo(str("Ball wall: ",BallWall));

	BallOD = IntegerMultiple(LightBodies[FlashIndex][F_GRIPOD] + 2*BallWall,1.0);
	echo(str(" OD: ",BallOD));

	BallLength = IntegerMultiple(min(sqrt(pow(BallOD,2) – pow(LightBodies[FlashIndex][F_GRIPOD],2)) – 24ThreadThick,
	LightBodies[FlashIndex][F_GRIPLEN]),1.0);
	echo(str(" length: ",BallLength));

	BallSides = 8*4;

	//- Set clamp ring dimensions

	ClampOD = 50;
	echo(str("Clamp OD: ",ClampOD));

	ClampLength = min(20.0,0.75*BallLength);
	echo(str(" length: ",ClampLength));

	ClampScrewOC = IntegerMultiple((ClampOD + BallOD)/2,1);
	echo(str(" screw OC: ",ClampScrewOC));

	//- Adjust hole diameter to make the size come out right

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//- Fairing Bracket
	// This part of the fairing mount supports the whole flashlight mount
	// Centered on screw hole

	module Bracket() {

	linear_extrude(height=Bracket[2],convexity=2)
	difference() {
	translate([(Bracket[0]/2 – BracketHoleOffset),0,0])
	offset(delta=ThreadWidth)
	intersection() {
	square([Bracket[0],Bracket[1]],center=true);
	union() {
	for (i=[-1,0,1]) // middle circle fills gap
	translate([i*(Bracket[0]/2 – BracketR),0])
	circle(r=BracketR);
	}
	}
	circle(d=BracketHoleOD/cos(180/8),$fn=8); // dead center at the origin
	}
	}

	//- General plate shape
	// Centered on the hole for the fairing bracket

	module PlateBlank() {

	difference() {
	translate([BracketHoleOC,0,0])
	intersection() {
	translate([0,0,Plate[2]/2]) // select upper half of spheres
	cube(Plate,center=true);
	hull()
	if (RoundEnds)
	for (i=[-1,1])
	translate([i*(Plate[0]/2 – PlateRad),0,0])
	resize([Plate[1]/2,Plate[1],2*Plate[2]])
	sphere(r=PlateRad); // nice round ends!
	else
	for (i=[-1,1], j=[-1,1])
	translate([i(Plate[0]/2 – PlateRad),j(Plate[1]/2 – PlateRad),0])
	resize([2PlateRad,2PlateRad,2*Plate[2]])
	sphere(r=PlateRad); // nice round corners!
	}
	translate([2*BracketHoleOC,0,-Protrusion]) // punch screw holes
	PolyCyl(BracketHoleOD,2*Plate[2],8);
	translate([0,0,-Protrusion])
	PolyCyl(BracketHoleOD,2*Plate[2],8);
	}
	}

	//- Inner plate

	module InnerPlate() {

	difference() {
	PlateBlank();
	translate([0,0,Plate[2] – Bracket[2] + Protrusion]) // punch fairing bracket
	Bracket();
	}
	}

	//- Slotted ball around flashlight
	// Print with brim to ensure adhesion!

	module SlotBall() {

	NumSlots = 8*2; // must be even, half cut from each end
	SlotWidth = 2*ThreadWidth;
	SlotBaseThick = 10*ThreadThick; // enough to hold finger ends together
	RibLength = (BallOD – LightBodies[FlashIndex][F_GRIPOD])/2;

	translate([0,0,BallLength/2])
	difference() {
	intersection() {
	sphere(d=BallOD,$fn=2*BallSides); // basic ball
	cube([2BallOD,2BallOD,BallLength],center=true); // trim to length
	}
	translate([0,0,-LightBodies[FlashIndex][F_GRIPOD]])
	rotate(180/BallSides)
	PolyCyl(LightBodies[FlashIndex][F_GRIPOD],2*BallOD,BallSides); // remove flashlight body

	for (i=[0:NumSlots/2 – 1]) { // cut slots
	a=i(2360/NumSlots);
	SlotCutterLength = LightBodies[FlashIndex][F_GRIPOD];
	rotate(a)
	translate([SlotCutterLength/2,0,SlotBaseThick])
	cube([SlotCutterLength,SlotWidth,BallLength],center=true);
	rotate(a + 360/NumSlots)
	translate([SlotCutterLength/2,0,-SlotBaseThick])
	cube([SlotCutterLength,SlotWidth,BallLength],center=true);
	}
	}

	color("Yellow")
	if (Support) {
	for (i=[0:NumSlots-1]) {
	a = i*360/NumSlots;
	rotate(a + 180/NumSlots)
	translate([(LightBodies[FlashIndex][F_GRIPOD] + RibLength)/2 + ThreadWidth,0,BallLength/(2*4)])
	cube([RibLength,2*ThreadWidth,BallLength/4],center=true);
	}
	}
	}

	//- Clamp around flashlight ball

	module BallClamp() {

	BossLength = ClampScrew[LENGTH] – 1*ClampScrewWasher[LENGTH];
	BossOD = ClampInsert[OD] + 2(6ThreadWidth);

	difference() {
	union() {
	intersection() {
	sphere(d=ClampOD,$fn=BallSides); // exterior ball clamp
	cube([ClampLength,2ClampOD,2ClampOD],center=true); // aiming allowance
	}
	hull()
	for (j=[-1,1])
	translate([0,j*ClampScrewOC/2,-BossLength/2])
	cylinder(d=BossOD,h=BossLength,$fn=6);
	}

	sphere(d=(BallOD + 1*ThreadThick),$fn=BallSides); // interior ball with minimal clearance

	for (j=[-1,1]) {
	translate([0,j*ClampScrewOC/2,-ClampOD]) // screw clearance
	PolyCyl(ClampScrew[ID],2*ClampOD,6);
	translate([0,j*ClampScrewOC/2, // insert clearance
	-(BossLength/2 – ClampInsert[LENGTH] – 3*ThreadThick)])
	rotate([0,180,0])
	PolyCyl(ClampInsert[OD],2*ClampOD,6);
	translate([0,j*ClampScrewOC/2, // insert transition
	-(BossLength/2 – ClampInsert[LENGTH] – 3*ThreadThick)])
	cylinder(d1=ClampInsert[OD]/cos(180/6),d2=ClampScrew[ID],h=6*ThreadThick,$fn=6);
	}
	}

	color("Yellow")
	if (Support) { // ad-hoc supports for top half
	NumRibs = 6;
	RibLength = 0.5 * BallOD;
	RibWidth = 1.9*ThreadWidth;
	SupportOC = ClampLength / NumRibs;

	cube([ClampLength,RibLength,4*ThreadThick],center=true); // base plate for adhesion

	render(convexity=2*NumRibs)
	intersection() {
	sphere(d=BallOD – 0*ThreadWidth); // cut at inner sphere OD
	cube([ClampLength + 2*ThreadWidth,RibLength,BallOD],center=true);
	union() { // ribs for E-Z build
	for (j=[-1,0,1])
	translate([0,j*SupportOC,0])
	cube([ClampLength,RibWidth,1.0*BallOD],center=true);
	for (i=[0:NumRibs]) // allow NumRibs + 1 to fill the far end
	translate([i*SupportOC – ClampLength/2,0,0])
	rotate([0,90,0])
	cylinder(d=BallOD – 2*ThreadThick,
	h=RibWidth,$fn=BallSides,center=true);
	}
	}
	}
	}

	//- Mount between fairing plate and flashlight ball
	// Build with support for bottom of clamp screws!

	module Mount() {


	difference() {
	translate([-BracketHoleOC,0,0]) // put bracket center at origin
	PlateBlank();
	mirror([0,1,0])
	translate([0,0,-Protrusion])
	linear_extrude(height=3*ThreadThick + Protrusion) {
	translate([BracketHoleOC + 15,0,0])
	text(text=">>>",size=5,spacing=1.20,font="Arial",halign="center",valign="center");
	translate([-BracketHoleOC,8,0])
	text(text=str("Toe ",ToeIn),size=5,spacing=1.20,font="Arial",halign="center",valign="center");
	translate([-BracketHoleOC,-8,0])
	text(text=str("Tilt ",Tilt),size=5,spacing=1.20,font="Arial",halign="center",valign="center");
	translate([BracketHoleOC,8,0])
	text(text=str("Roll ",Roll),size=5,spacing=1.20,font="Arial",halign="center",valign="center");
	translate([-(BracketHoleOC + 15),0,0])
	rotate(90)
	text(text="KE4ZNU",size=4,spacing=1.20,font="Arial",halign="center",valign="center");
	}
	}

	rotate([0,ToeIn,Tilt])
	translate([0,0,ClampOD/2])
	rotate([-Roll,0,0])
	intersection() {
	translate([0,0,-ClampOD/2])
	cube([2ClampOD,2ClampOD,ClampOD],center=true);
	BallClamp();
	}

	color("Yellow")
	if (MountSupport) { // anchor outer corners at worst overhang
	RibWidth = 1.9*ThreadWidth;
	SupportOC = 0.1 * ClampLength;
	difference() {
	rotate([0,0,Tilt])
	translate([Shift,0,0])
	for (i=[-4.5,-2.5,0,2.0,4.5])
	translate([i*SupportOC – 0.0,0,(5 + Plate[2])/2])
	cube([RibWidth,0.7*ClampOD,(5 + Plate[2])],center=true);
	rotate([0,ToeIn,Tilt])
	translate([Shift,0,ClampOD/2])
	rotate([-Roll,0,0])
	sphere(d=ClampOD – 2*ThreadWidth,$fn=BallSides);
	}
	}
	}

	//- Build things

	if (Component == "Ball")
	SlotBall();

	if (Component == "BallClamp")
	if (Layout == "Show")
	BallClamp();
	else if (Layout == "Build") {
	Both = false;
	difference() {
	union() {
	translate([Both ? ClampLength : 0,0,0])
	BallClamp();
	if (Both)
	translate([-ClampLength,0,0])
	rotate([180,0,0])
	BallClamp();
	}
	translate([0,0,-ClampOD/2])
	cube([2ClampOD,2ClampOD,ClampOD],center=true);
	}
	}

	if (Component == "Mount")
	Mount();

	if (Component == "Plates") {
	translate([0,0.7*Plate[1],0])
	InnerPlate();
	translate([0,-0.7*Plate[1],0])
	PlateBlank();
	}

	if (Component == "Bracket")
	Bracket();

view raw Fairing Flashlight Mount.scad hosted with ❤ by GitHub
