The New Hotness

We just scrapped out the old dish drainer, only to find the gadget bin on the new drainer let the measuring spoons fall over and lie along its bottom. After a week of fishing them out from under paring knives, cheese slicers, and suchlike, I gimmicked up a holder:

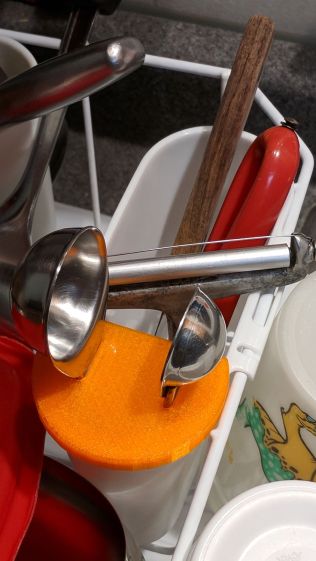

Measuring Spoon Drainer - installed — Measuring Spoon Drainer – installed

One might suggest natural PETG, rather than orange, thereby displaying a shocking ignorance of the MVP concept. We’ll run with orange for the shakedown trials, then build-measure-learn, iterate, and, for all I know, we may even pivot.

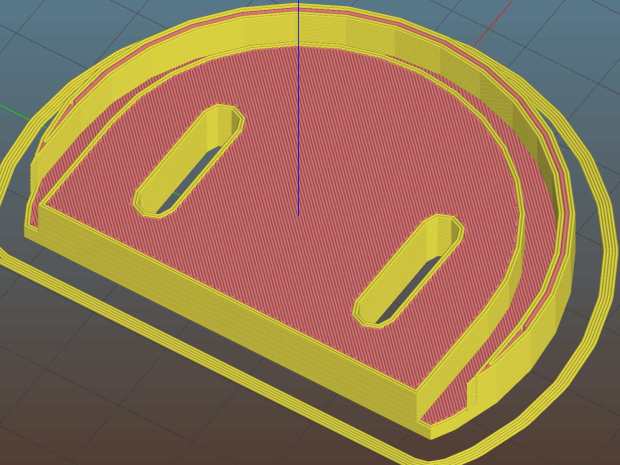

A bottom-up view of the solid model shows the trench accommodating the bin lip:

Measuring Spoon Drainer - Slic3r preview — Measuring Spoon Drainer – Slic3r preview

The OpenSCAD source code as a GitHub Gist:

	// Measuring spoon drainer
	// Ed Nisley KE4ZNU – 2018-01-13

	/* [Extrusion] */

	ThreadThick = 0.25; // [0.20, 0.25]
	ThreadWidth = 0.40; // [0.40]

	/* [Hidden] */

	Protrusion = 0.1; // [0.01, 0.1]

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	ID = 0;
	OD = 1;
	LENGTH = 2;

	//- Adjust hole diameter to make the size come out right

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	/* [Spoon] */

	SpoonOD = IntegerMultiple(3.3,2);
	SpoonWidth = IntegerMultiple(16.5,2.0);
	SpoonOC = 30.0;

	/* [Drainer] */

	Drainer = [52.0,59.5,100.0]; // overall drainer cup

	DrainerRimWidth = (Drainer[1] – Drainer[0])/2;
	DrainerRimHeight = 2.5;

	DrainerExtent = 15.0;

	/* [Hidden] */

	WallThick = 2.0; // basic wall & floor thickness

	PlateThick = WallThick + 2*DrainerRimHeight;


	NumSides = 8*4;

	//—–
	// Define shapes

	module CoverPlate() {

	OD = Drainer[OD] + 2*WallThick;

	difference() {
	cylinder(d=OD,h=PlateThick,$fn=NumSides);
	for (j=[-1,1])
	translate([-(OD/2 – Protrusion),j*(Drainer[ID]/2 + DrainerRimWidth/2),WallThick + DrainerRimHeight + Protrusion/2])
	cube([OD,DrainerRimWidth,2*DrainerRimHeight + Protrusion],center=true);
	translate([0,0,WallThick + PlateThick/2])
	rotate(-90)
	rotate_extrude(angle=180,$fn=NumSides)
	translate([Drainer[ID]/2 + DrainerRimWidth/2,0])
	square([DrainerRimWidth,PlateThick],center=true);
	translate([-(OD/2 + DrainerExtent),0,PlateThick/2])
	cube([OD,OD,PlateThick + 2*Protrusion],center=true);
	}
	}

	//—–
	// Build it

	difference() {
	CoverPlate();
	for (j=[-1,1])
	translate([0,j*(SpoonOC/2),-Protrusion])
	linear_extrude(height=PlateThick + 2*Protrusion)
	hull()
	for (i=[-1,1])
	translate([i*(SpoonWidth – SpoonOD)/2,0])
	circle(d=SpoonOD,$fn=8);
	}

view raw Measuring Spoon Drainer.scad hosted with ❤ by GitHub

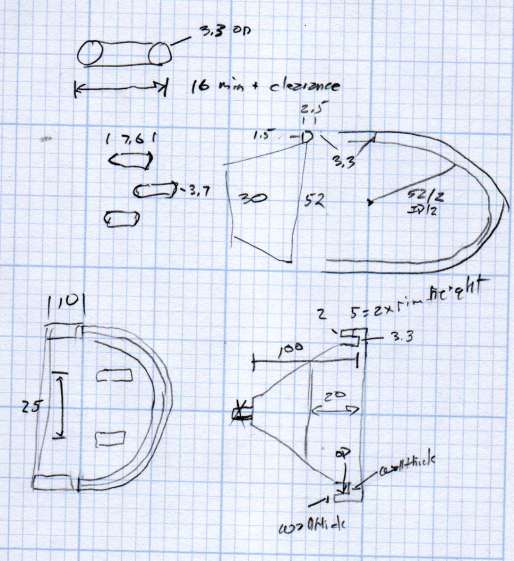

The original doodle has useful dimensions, along with the usual over-elaborate features sacrificed in order to get it made:

Measuring spoon drainer - doodles — Measuring spoon drainer – doodles
