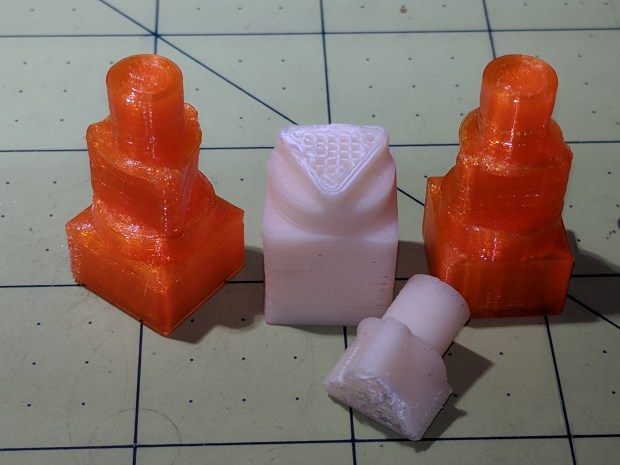

Smoking bacon during the winter months brought the third tank into play, requiring the POL-to-QD adapter I’d had in the drawer for just such an occasion. Not much to my surprise, the old PLA fitting adapter snapped along the layers near the outside end of the triangular snout:

So I ran off the two orange ones in PETG with six perimeter layers and 50% infill density:

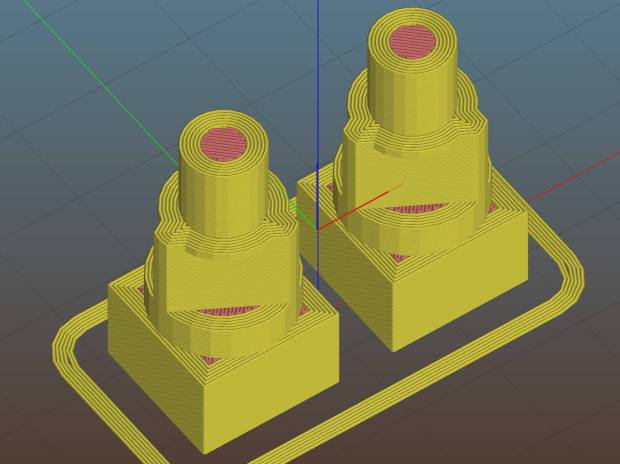

Propane QD Adapter Tool - Slic3r — Propane QD Adapter Tool – Slic3r

Those should last roughly forever …

The OpenSCAD source code as a GitHub Gist:

	// Propane tank QD connector adapter tool
	// Ed Nisley KE4ZNU November 2012
	// 2018-04-08 toss MCAD includes overboard

	//- Extrusion parameters must match reality!
	// Print with about half a dozen perimeter threads and 50% infill

	ThreadThick = 0.25;
	ThreadWidth = 2.0 * ThreadThick;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	//———————-
	// Dimensions

	WrenchSize = (5/8) * inch; // across the flats
	WrenchThick = 10;

	NoseDia = 8.6;
	NoseLength = 9.0;

	LockDia = 12.5;
	LockRingLength = 1.0;
	LockTaperLength = 1.5;

	TriDia = 15.1;
	TriWide = 12.2; // from OD across center to triangle side
	TriOffset = TriWide – TriDia/2; // from center to triangle side
	TriLength = 9.8;

	NeckDia = TriDia;
	NeckLength = 4.0;

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,
	h=Height,
	$fn=Sides);
	}

	/*
	module ShowPegGrid(Space = 10.0,Size = 1.0) {

	Range = floor(50 / Space);

	for (x=[-Range:Range])
	for (y=[-Range:Range])
	translate([xSpace,ySpace,Size/2])
	%cube(Size,center=true);
	}
	*/

	//——————-
	// Build it…

	$fn = 4*6;

	//ShowPegGrid();

	union() {

	translate([0,0,(WrenchThick + NeckLength + TriLength – LockTaperLength – LockRingLength + Protrusion)])
	cylinder(r1=NoseDia/2,r2=LockDia/2,h=LockTaperLength);

	translate([0,0,(WrenchThick + NeckLength + TriLength – LockRingLength)])
	cylinder(r=LockDia/2,h=LockRingLength);



	difference() {
	union() {

	translate([0,0,WrenchThick/2])
	cube([WrenchSize,WrenchSize,WrenchThick],center=true);

	cylinder(r=TriDia/2,h=(WrenchThick + NeckLength +TriLength));

	cylinder(r=NoseDia/2,h=(WrenchThick + NeckLength + TriLength + NoseLength));
	}

	for (a=[-1:1]) {
	rotate(a*120)
	translate([(TriOffset + WrenchSize/2),0,(WrenchThick + NeckLength + TriLength/2 + Protrusion/2)])
	cube([WrenchSize,WrenchSize,(TriLength + Protrusion)],center=true);
	}
	}
	}

view raw Propane QD Adapter Tool.scad hosted with ❤ by GitHub
