CO₂ Laser Tube Current: Controller Bandwidth Measurement

Use the sine-bar bandwidth pattern:

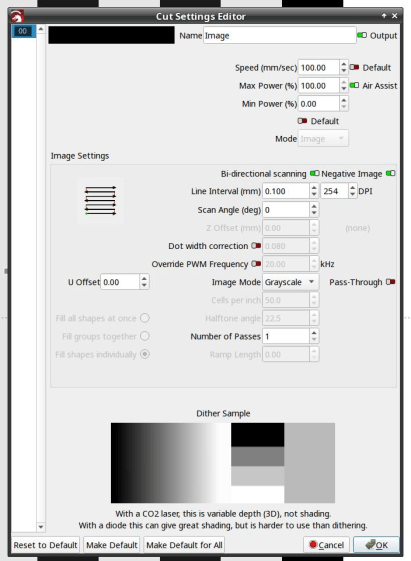

Engrave it in grayscale mode as a negative image with 0.1 mm line spacing:

Monitor the Ruida KT332N controller’s analog laser power control output:

The traces:

• 1 X axis DIR, low = left-to-right (yellow)
• 2 L-ON laser enable, low active (magenta)
• 3 L-AN analog voltage (cyan)

The scope triggers when the top two traces go low during a left-to-right scan with the laser beam active. The trigger point lies far off-screen to the left, with the delay set to pull the interesting part of the scan into view.

Although both the controller’s L-AN output and the laser’s IN input specify a signal range of 0 V to 5 V, the analog output voltage never goes below 0.4 V, but (as will seen later) that produces 0 mA from the laser power supply.

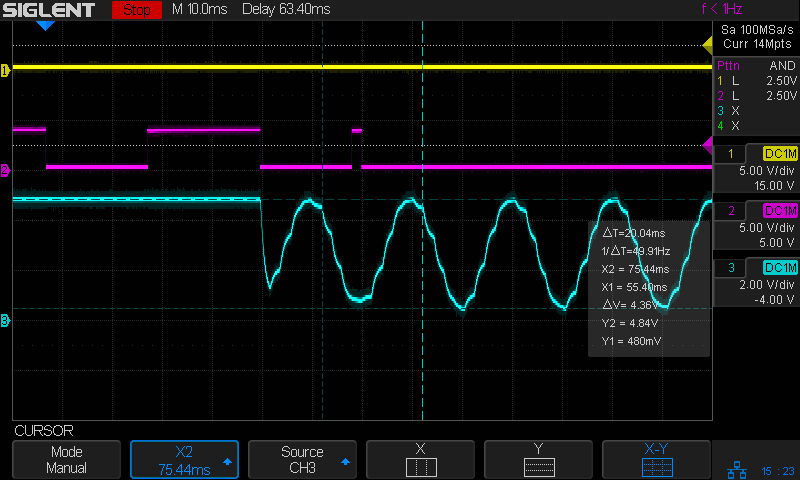

Set the X cursors to the top and bottom of the sine wave and read off the 4.36 V peak-to-peak value.

Set the Y cursors to matching points on successive cycles and read off ΔT=33.44 ms. Because each cycle is 1 mm wide, the scan speed is set to 25 mm/s and traveling 1 mm should require 40 ms, puzzle over that number and the related fact that 1/ΔT=29.91 Hz. This seems to happen only for speeds under 50-ish mm/s, for which I have no explanation.

Repeat the exercise at various speeds up through 500 mm/s:

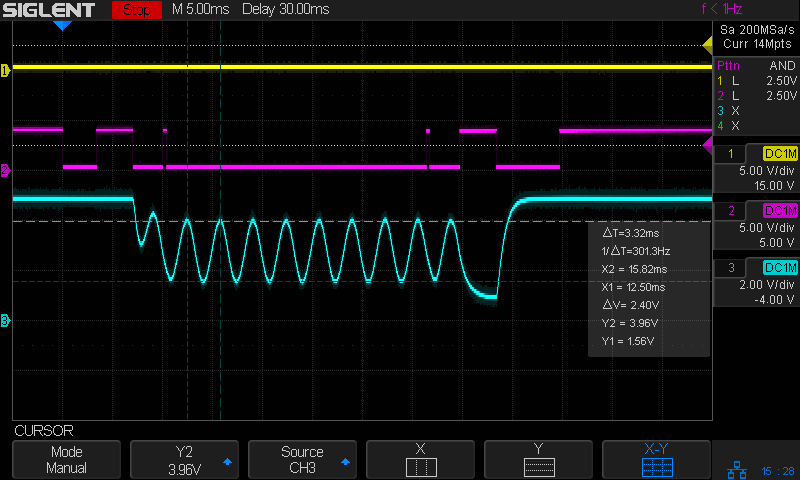

The analog output voltage has dropped to 1.56 Vpp.

The average voltage increases from 2.66 V at 25 (or is it 33?) Hz to 2.78 at 500 Hz, which is reasonably close to the same value.

The signal’s -3dB point would be at √½ × 4.36 Vpp = 3.1 Vpp, which happens at 200 mm/s = 200 Hz:

Which is eerily close to the “around 200 Hz” bandwidth figured from the risetime measurements.

All of the analog output measurements as a slide show:

One might now wonder whether there’s any bandwidth difference between the analog and PWM signals as measured in the laser tube current.

Data! We need more data!
