Casio EX-Z850 Backup Battery Replacement

When our Larval Engineer repaired the Casio EX-Z850 camera’s buttons, we noticed that the memory backup battery was on its last legs:

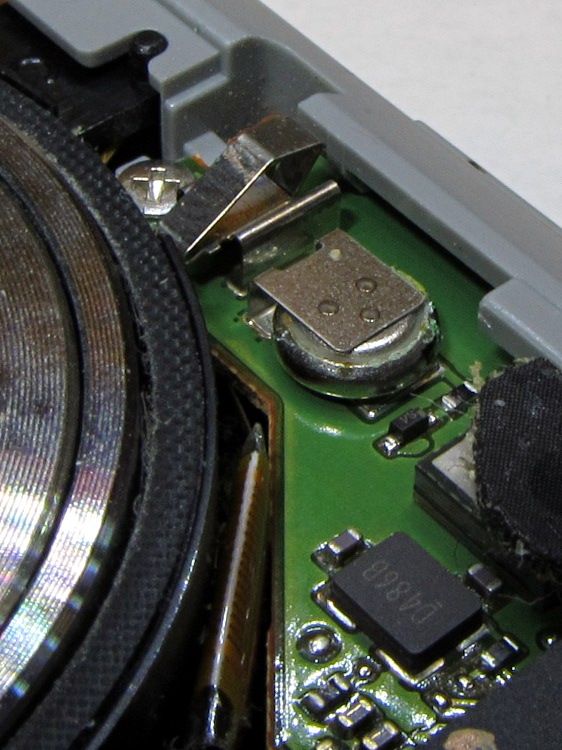

EX-Z850 internal battery corrosion

EX-Z850 internal battery corrosion

The camera has returned home, where I’ll put it to good use on the microscope, but I’m the type of guy who swaps batteries every now and again, soooo that needs fixing. Wikipedia says the battery isn’t replaceable, but you can’t believe everything you read on Wikipedia, right?

Removing the camera’s front cover (stick the screws to a length of masking tape!) reveals the backup battery hasn’t magically healed itself:

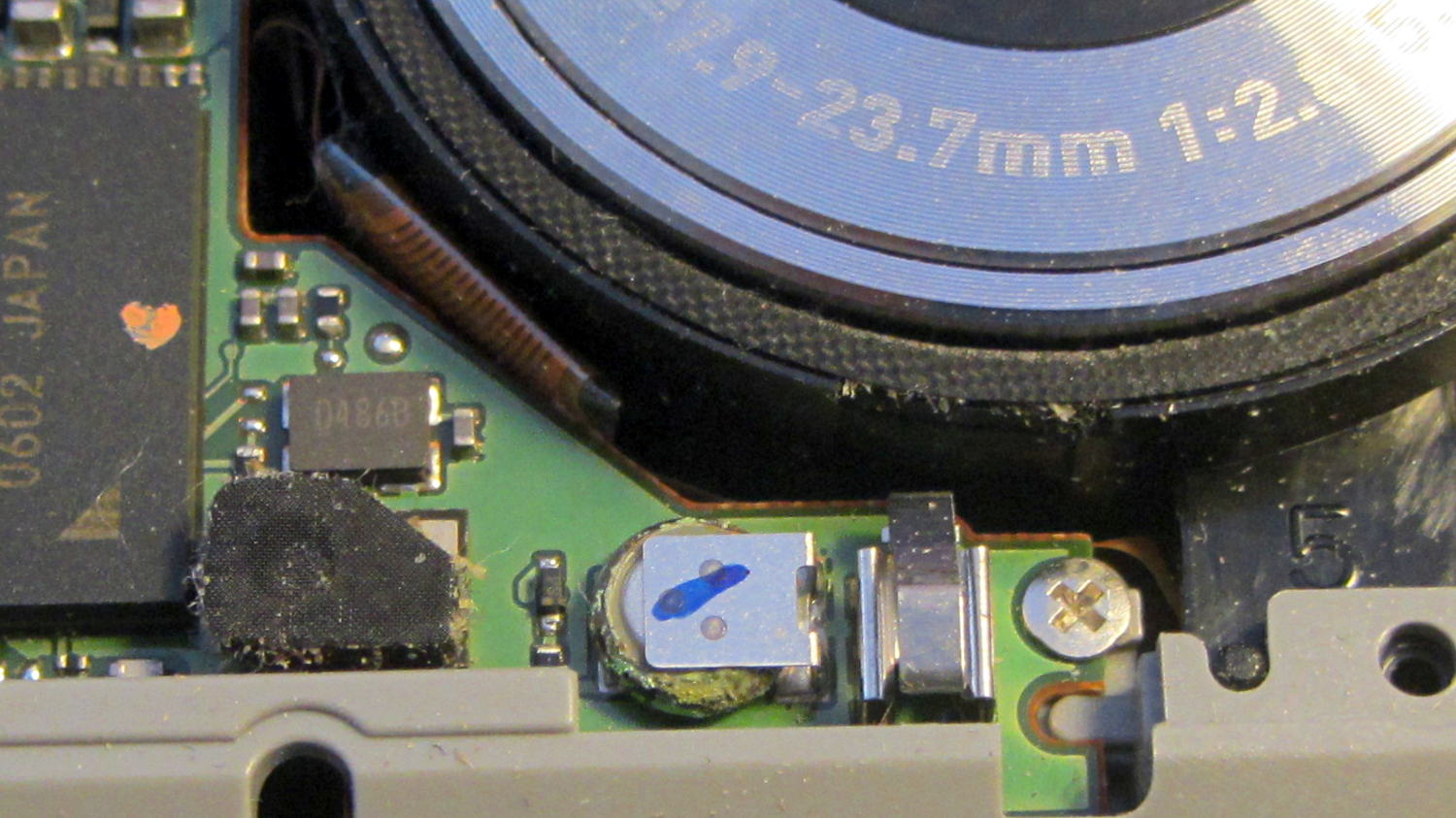

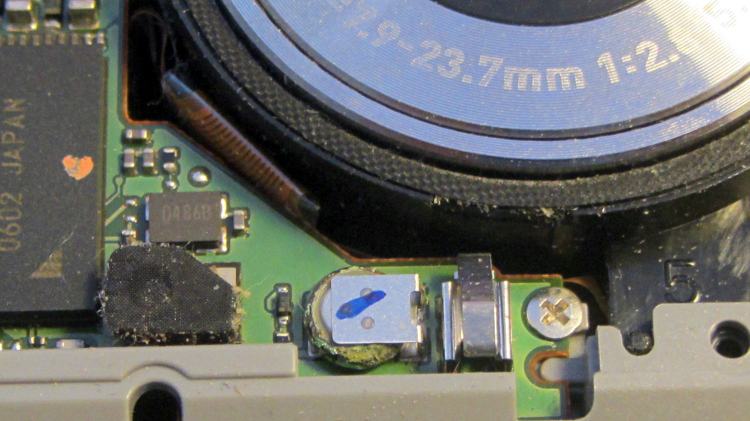

Casio EX-Z850 backup battery - corrosion

Casio EX-Z850 backup battery – corrosion

The main battery applies 3.2 V with the top terminal negative; it’s marked to help me remember that fact.

I snipped both legs of the top contact bracket, which promptly fell off, and then pushed the battery off its bottom contact. The condition of those two pads suggests a pair of cold solder joints (clicky for more dots):

Casio EX-Z850 backup battery - contact pads

Casio EX-Z850 backup battery – contact pads

I wanted to replace it with a polyacene supercap, but there’s just not enough room in there. The biggest cap that fit was a 33 μF 16 V SMD electrolytic cap, so I soldered one in place:

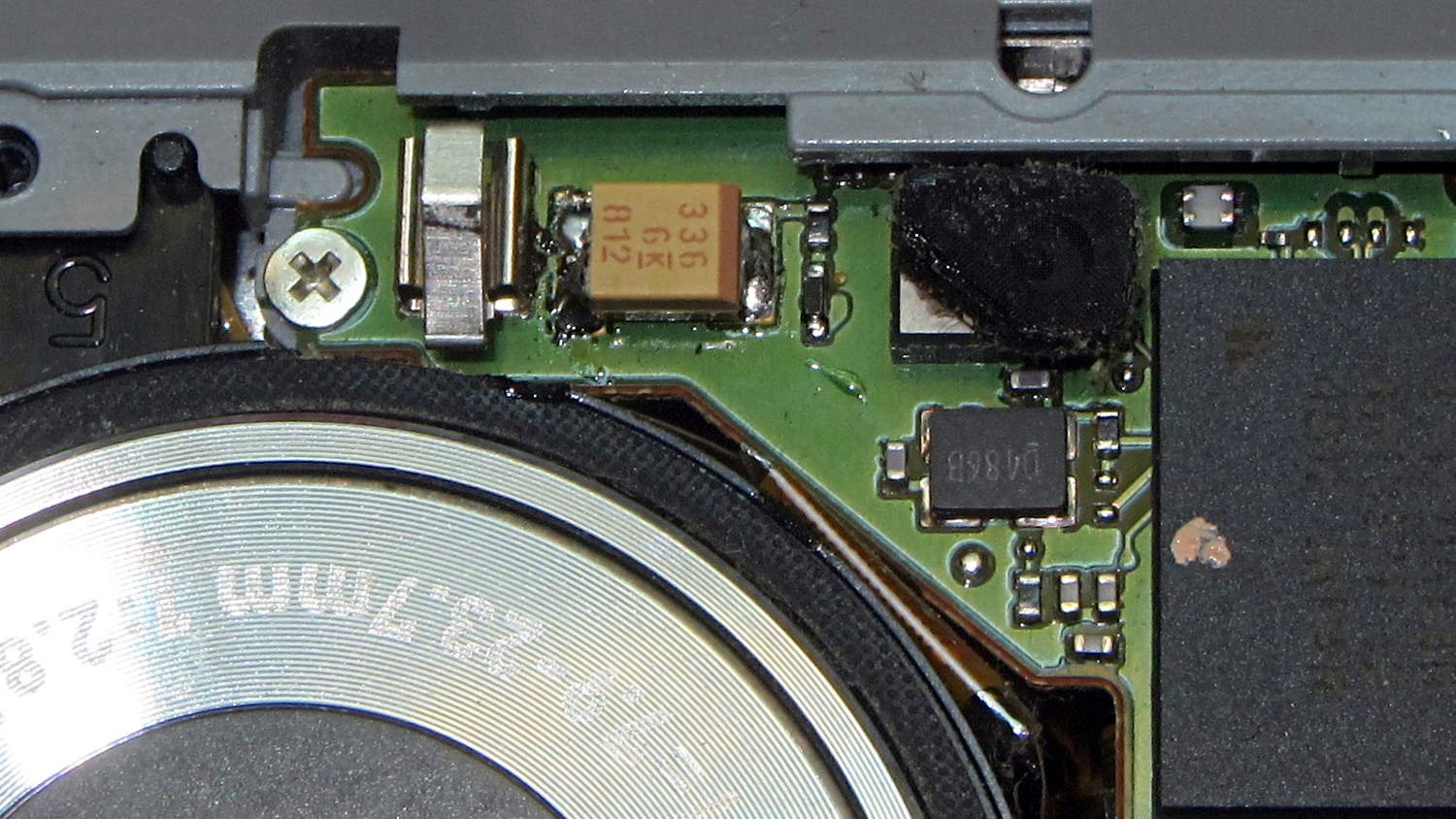

Casio EX-Z850 backup battery - capacitor replacement

Casio EX-Z850 backup battery – capacitor replacement

I had to flip the camera around to get the soldering iron in between the cap and what looks to be an intrusion monitoring switch just to its left. No lie, that shiny metal thing seems to be a tab that presses against the front cover; it could be a static discharge / grounding point, but the base looks more complex than that.

Now, a capacitor isn’t a battery, but memory backup doesn’t require much of a battery, either. I guesstimated the memory (or whatever) would draw a few microamps, at most, giving me a few seconds, at least, to swap batteries. A quick measurement shows that I’ll have plenty of time:

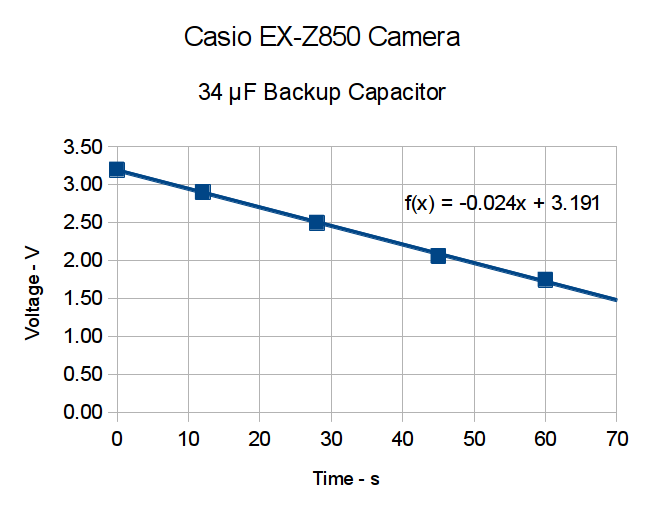

Casio EX-X850 backup capacitor - voltage vs time

Casio EX-X850 backup capacitor – voltage vs time

The camera started up fine after that adventure, so the memory stays valid with the backup voltage down around 1 V.

The cap measured 34 μF, so a voltage decline of 24 mV/s works out to:

IC = C (dV/dT) = 34 μF x 24 mV/s = 820 nA

So, at least at room temperature, the memory draws less than a microamp.

I love it when a plan comes together!

With any luck, that capacitor should outlast the rest of the camera. It’ll definitely outlast a lithium battery, even if I could find one to fit in that spot.

I did those measurements by sampling the capacitor, rather than holding the meter probes in place, because the 300 nA of current drawn by a 10 MΩ input resistance would cause a pretty large measurement error…

About these ads

,

  1. #1 by madbodger on 2014-02-26 - 12:20

    The camera has a memory card, what does the battery back up? RTC? Camera settings? How bad would it be without backup?

    • #2 by Ed on 2014-02-26 - 12:35

      The backup battery definitely keeps the clock running: without that, the camera requires a tedious date/time setting whenever the main battery comes out. It’s sufficiently annoying that Something Had To Be Done.

      The camera configuration data apparently lives in non-volatile memory, because I screwed around for the better part of half an hour extracting the lithium cell, figuring out which cap would fit the pads, and soldering it in place, all with the main battery on the bench. If that’s not exactly non-volatile, it’s close enough for my simple needs.

      Other than the battery, though, the camera remains in fine shape!
