Automated Cookie Cutters: Putting It All Together

With that musing, image processing, and data reformatting in hand, this now seems to work pretty well…

This is MakeCutter.sh, the Bash file that controls the overall process:

#!/bin/bash
DotsPerMM=3
MapHeight=5
ImageName=${1%%.*}
rm ${ImageName}_* ${ImageName}.stl
echo Normalize and prepare grayscale image...
convert $1 -trim -type Grayscale -depth 8 -auto-level -flip -negate -flop ${ImageName}_prep.png
echo Create PGM files...
convert ${ImageName}_prep.png -compress none ${ImageName}_map.pgm
convert ${ImageName}_prep.png -white-threshold 1 -compress none ${ImageName}_plate.pgm
echo Create height map data files...
ImageX=`identify -format '%[fx:w]' ${ImageName}_map.pgm`
ImageY=`identify -format '%[fx:h]' ${ImageName}_map.pgm`
cat ${ImageName}_map.pgm | tr -s ' \012' '\012' | tail -n +5 | column -x -c $((8*$ImageX)) > {ImageName}_map.dat
cat ${ImageName}_plate.pgm | tr -s ' \012' '\012' | tail -n +5 | column -x -c $((8*$ImageX)) > ${ImageName}_plate.dat
echo Create height map STL files...
time openscad -D DotsPerMM=$DotsPerMM -D Height=$MapHeight -D FileName=\"${ImageName}_map.dat\" -o ${ImageName}_map.stl MakeSurface.scad
time openscad -D DotsPerMM=$DotsPerMM -D Height=255 -D FileName=\"${ImageName}_plate.dat\" -o ${ImageName}_plate.stl MakeSurface.scad
echo Create cookie press and cutter...
time openscad -D fnPress=\"${ImageName}_map.stl\" -D fnPlate=\"${ImageName}_plate.stl\" -D ImageX=$ImageX -D ImageY=$ImageY -o ${ImageName}.stl Cookie\ Cutter.scad

Hand it an image file name and it just does the rest:

./MakeCutter.sh jellyfish-high.png

I assume you’ll pick a workable dots/mm resolution and suchlike for your setup, so they’re hardcoded into the script. You could add them to the command line if you like.

Starting from the same jellyfish.svg file as before, I came up with a slightly different jellyfish-high.png grayscale height map image with more dots (246×260 dots at 3 dot/mm = 82×87 mm). The original 160×169 file required about half an hour to render and, as you’d expect, increasing the number of dots by 1.5 (nearly √2) doubled the time to just over an hour:

Manually tweaked jellyfish-high.png

Manually tweaked jellyfish-high.png

The first convert step turns that into the basic height map jellyfish_prep.png file:



The next two convert steps produce two ASCII PGM files:

  • jellyfish-high_map.pgm
  • jellyfish-high_plate.pgm

The _map file has the grayscale height map data, which is identical to the prepared PNG image:

jellyfish-high_map

jellyfish-high_map

The _plate file defines the outline of the cookie cutter with a completely white interior, which is why the original cookie height map image can’t contain any pure white areas inside the outline (they’d become black here and produce islands). It seems the OpenSCAD minkowski() function runs significantly faster when it doesn’t process a whole bunch of surface detail; all we care about is the outline, so that’s all it gets:

jellyfish-high_plate

jellyfish-high_plate

I originally composited the height maps on a known-size platen and worked with those dimensions, but it’s easier to just extract the actual image dimensions and feed them into the code as needed. As with all ImageMagick programs, identify has a myriad options.

Those two lines of Bash gibberish reformat the ASCII PGM files into the ASCII DAT arrays required by OpenSCAD’s surface() function.

The MakeSurface.scad script eats a DAT height map file and spits out a corresponding STL file. The Height parameter defines the overall Z-axis size of the slab; the maximum 255 corresponds to pure white in the image file:

// Generate object from image height map
// Ed Nisley - KE4ZNU
// October 2012
// This leaves the rectangular slab below Z=0 over the full image area
//		... reduced in thickness by the Height/255 ratio

FileName = "noname.dat";				// override with -D FileName="whatever.dat"
Height = 255;						// overrride with -D Height=number
DotsPerMM = 2;						// overrride with -D DotsPerMM=number

ScaleXYZ = [1/DotsPerMM,1/DotsPerMM,Height/255];

echo("File: ",FileName);
echo("Height: ",Height);
echo("Dots/mm: ",DotsPerMM);
echo("Scale: ",ScaleXYZ);

module ShowPegGrid(Space = 10.0,Size = 1.0) {
  Range = floor(50 / Space);
	for (x=[-Range:Range])
	  for (y=[-Range:Range])
		translate([x*Space,y*Space,Size/2])
		  %cube(Size,center=true);
}

//- Build it

ShowPegGrid();

scale(ScaleXYZ)
	surface(FileName,center=true,convexity=10);

The grid defining the build platform doesn’t show up in the output file; it’s there just for manual fiddling inside the GUI. When run from the command line, OpenSCAD simply creates the output file.

The _map.stl file has the height map data that will form the cookie press:

jellyfish-high_map - Model

jellyfish-high_map – Model

The _plate.stl file is basically a digital bar cookie that will define the cutter:

jellyfish-high_plate - Model

jellyfish-high_plate – Model

It’s possible to produce the cutter in one shot, starting from the DAT files, but having the two STL files makes it (barely) feasible to experiment interactively within the OpenSCAD GUI.

This OpenSCAD program produces the cutter and press:

// Cookie cutter from grayscale height map using Minkowski sum
// Ed Nisley KE4ZNU - November 2012

//-----------------
// Cookie cutter files

BuildPress = true;
BuildCutter = true;

fnPress = "nofile.stl";					// override with -D 'fnPress="whatever.stl"'
fnPlate = "nofile.stl";					// override with -D 'fnPlate="whatever.stl"'

ImageX = 10;						// overrride with -D ImageX=whatever
ImageY = 10;

MaxConvexity = 5;					// used for F5 previews in OpenSCAD GUI

echo("Press File: ",fnPress);
echo("Plate File: ",fnPlate);
echo("Image X: ",ImageX," Y: ",ImageY);

//- Extrusion parameters - must match reality!

ThreadThick = 0.25;
ThreadWidth = 2.0 * ThreadThick;

//- Cookie cutter parameters

TipHeight = IntegerMultiple(8,ThreadThick);		// cutting edge
TipWidth = 4*ThreadWidth;

WallHeight = IntegerMultiple(7,ThreadThick);		// center section
WallWidth = 8*ThreadWidth;

LipHeight = IntegerMultiple(2.0,ThreadThick);		// cutter handle
LipWidth = IntegerMultiple(8.0,ThreadWidth);

CutterGap = IntegerMultiple(2.0,ThreadWidth);		// gap between cutter and press

PlateThick = IntegerMultiple(3.0,ThreadThick);		// solid plate under press relief

//- Build platform

PlatenX = 100;						// build platform size
PlatenY = 120;
PlatenZ = 120;						// max height for any object
PlatenFuzz = 2;

MaxSize = max(PlatenX,PlatenY);				// larger than any possible dimension ...

ZFuzz = 0.20;						// height of numeric junk left by grayscale conversion
ZCut = 1.20;						// thickness of block below Z=0

//- Useful info

function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

Protrusion = 0.1;					// make holes and unions work correctly

//-----------------
// Import height map STL, convert to cookie press image

module PressSurface() {

	translate([0,0,-ZFuzz])
		difference() {
			import(fnPress,convexity=MaxConvexity);
			translate([-(ImageX + PlatenFuzz)/2,-(ImageY + PlatenFuzz)/2,-ZCut])
				cube([(ImageX + PlatenFuzz),(ImageY + PlatenFuzz),ZCut+ZFuzz],center=false);
		}
}

//-----------------
// Import plate STL, slice off a slab to define outline

module Slab(Thick=1.0) {
	intersection() {
		translate([0,0,Thick/2])
			cube([(PlatenX+PlatenFuzz),(PlatenY+PlatenFuzz),Thick],center=true);
		translate([0,0,-1])
			import(fnPlate,convexity=MaxConvexity);
	}
}

//- Put peg grid on build surface

module ShowPegGrid(Space = 10.0,Size = 1.0) {

  Range = floor(50 / Space);

	for (x=[-Range:Range])
	  for (y=[-Range:Range])
		translate([x*Space,y*Space,Size/2])
		  %cube(Size,center=true);

}

//- Build it

ShowPegGrid();

if (BuildPress) {
	echo("Building press");
	union() {
		minkowski() {					// fingernail ridge around press
			Slab(LipHeight - 1);			//  ... same thickness as cutter lip
			cylinder(r=CutterGap/2,h=1);
		}
		translate([0,0,(LipHeight - Protrusion)])	// solid plate under press
			Slab(PlateThick - LipHeight + Protrusion);
		translate([0,0,PlateThick])			// cookie press height map
			intersection() {
				import(fnPress,convexity=MaxConvexity);
				translate([0,0,-Protrusion])
					Slab(PlatenZ + Protrusion);
			}

	}
}

if (BuildCutter) {
	echo("Building cutter");
	difference() {
		union() {					// stack cutter layers
			translate([0,0,(WallHeight + LipHeight - 1)])
				minkowski() {
					Slab(TipHeight - 1);
					cylinder(r=(TipWidth + CutterGap),h=1);
				}
			translate([0,0,LipHeight - 1])
				minkowski() {
					Slab(WallHeight - 1);
					cylinder(r=(WallWidth + CutterGap),h=1);
				}
			minkowski() {
				Slab(LipHeight - 1);
				cylinder(r=(LipWidth + CutterGap),h=1);
			}
		}
		minkowski() {					// punch out opening for cookie press
			translate([0,0,-2])
				Slab(PlatenZ);
			cylinder(r=CutterGap,h=1);
		}
	}
}

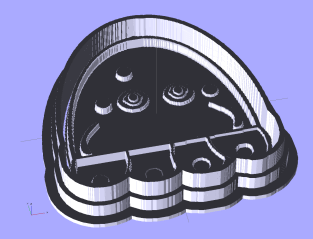

The top view shows the height map press nested inside the cutter blade, but it’s not obvious they’re two separate pieces:

jellyfish-high - Cutter and Press - top view

jellyfish-high – Cutter and Press – top view

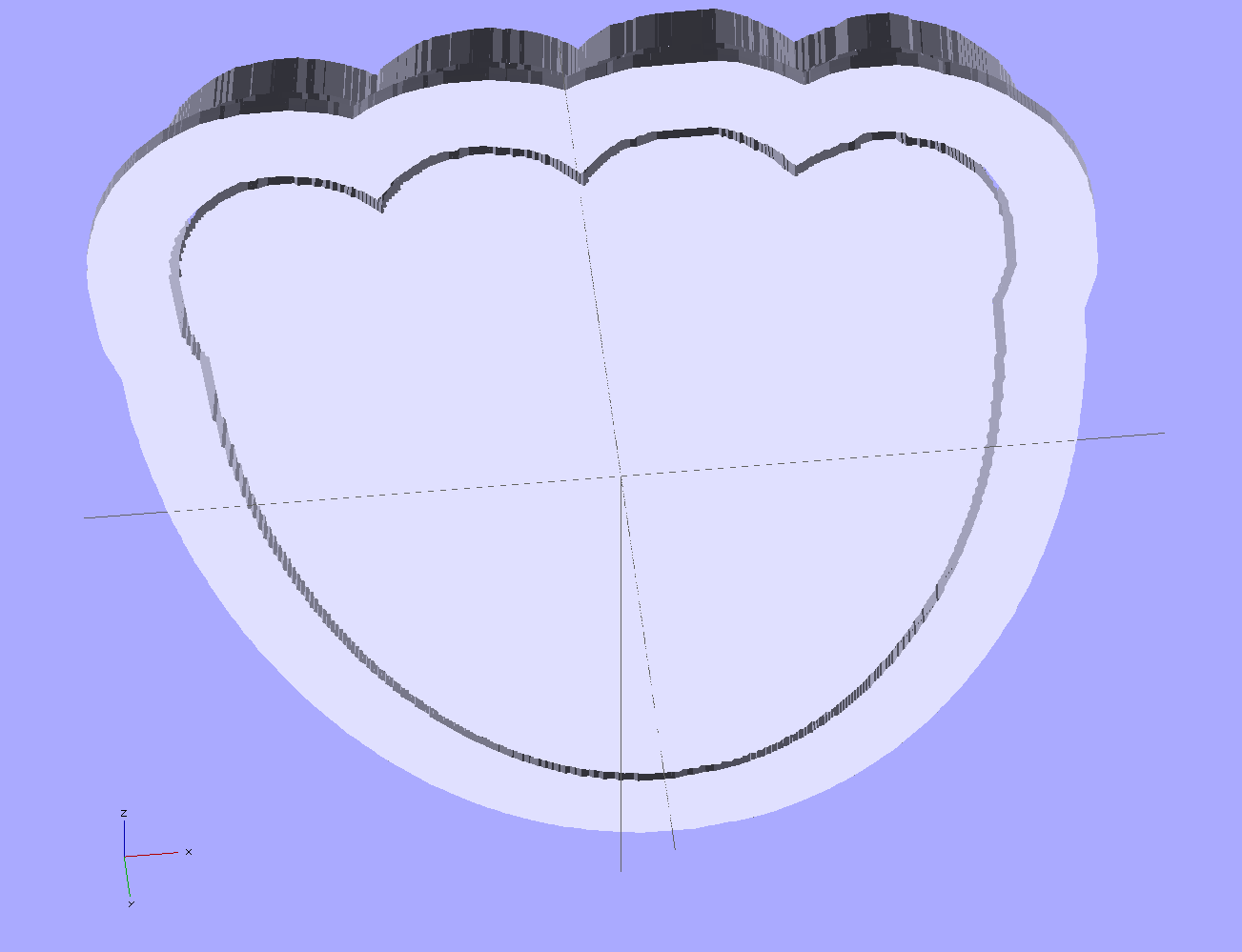

The bottom view shows the 1 mm gap between the two objects:

jellyfish-high - Cutter and Press - bottom view

jellyfish-high – Cutter and Press – bottom view

Now, to print the thing [Update: like that] so I can make some cookies…

Further musings:

  • Printing separately would allow a tighter fit between the press and the cutter: an exact fit won’t work, but 2 mm may be too much.
  • A knob glued on the flat surface of the press would be nice; the fingernail ridge may get annoying.
  • PLA seems more socially acceptable than ABS for foodie projects. Frankly, I doubt that it matters, at least in this application.
  • A bigger build platform would be nice…
About these ads

,

  1. #1 by Bryon Miller on 3-November-2013 - 23:56

    This is so cool, but unfortunately I’m too dumb to interpret this and make any use of it. I do have a Replicator 2 and I do want to make some cookie cutters like the Dr Who Tardis and Dalek. I want to make some Street Fighter 2 and other cookie cutters for myself. How would I make use of all that programming? My brothers work has Openscad but I have no idea how to use it. Can all this code be put in it somehow then I can just supply the pictures so I can make cookie cutters?

    • #2 by Ed on 4-November-2013 - 08:15

      too dumb to interpret this

      Piffle! If I could learn how to do it, so can you!

      I can just supply the pictures so I can make cookie cutters

      That’s pretty much how it works: the Bash script processes your grayscale image with Imagemagick to create the height map data files, then hands those files to OpenSCAD in command-line mode to create the STL files.

      The source code given in a later post improves the process a bit, so you should start there.

      Probably the biggest stumbling block will be the Linux PC that runs the Bash script and programs, but using Linux means Imagemagick and OpenSCAD will be available from the distro’s repositories. I suppose the Bash script could be adapted to run under Windows, but … not by me!

      If you don’t need the cookie press, you can use the simpler process that produced the Tux cutter. That post shows how you can produce a good-looking image file with Inkscape and the pstoedit utility; it also includes a newer version of the OpenSCAD program.

      Or, I suppose, you could send the picture to Cristin of Cristin’s Cookies and let her conjure up a cutter for you… [grin]

  2. #3 by A.Parusov on 4-December-2013 - 00:01

    Thank you for this solution! I have running it on OS X Mountain Lion after installing fink. I had to change column -x -c $((8*$ImageX)) to column -x -c $((16*$ImageX)) also.

    • #4 by Ed on 4-December-2013 - 09:23

      change column -x -c $((8*$ImageX)) to column -x -c $((16*$ImageX))

      That suggests the column command on Lion produces 16-character columns, which would certainly eliminate the risk of having two adjacent numeric columns collide!

      You’ll probably need a version of OpenSCAD from this spring or after commit 825fbc7b9e on 24 Nov, because the versions in between had a different numeric representation (?) that consumed enough memory that my cutter models crashed.

      Eat a cookie for me… [grin]
