MOSFET RDS Bestiary

Some results from the MOSFET tester project!

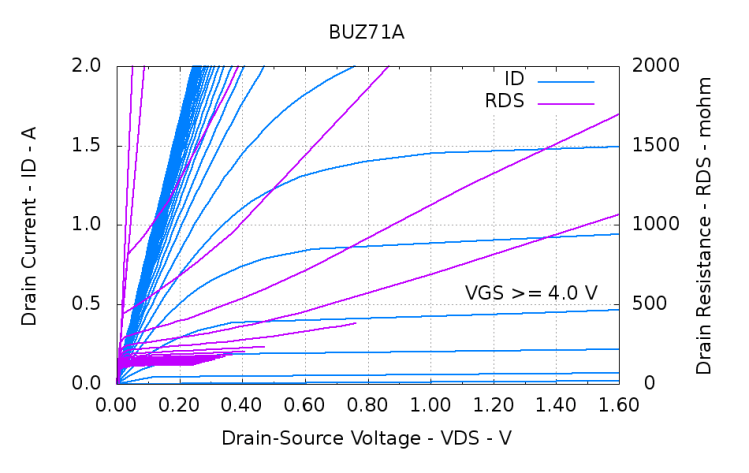

The 120 m 50 V BUZ71A that served as the crash test dummy while I got the thing working:

BUZ71A-overview

BUZ71A-overview

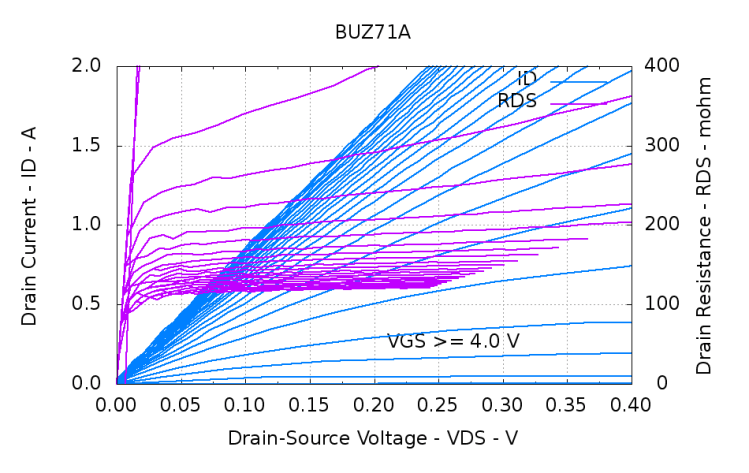

A detail of the interesting area near the origin:

BUZ71A-detail

BUZ71A-detail

The datasheet drain resistance values are the maximum values, so they’ll generally be higher than what I measure.

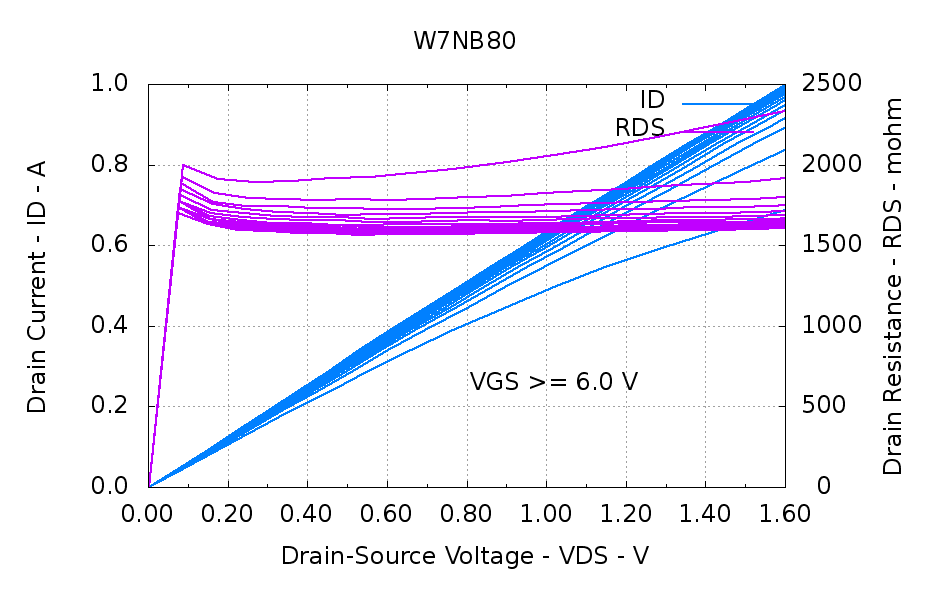

A plastic-encapsulated W7NB80 with a 1.9  (!)  drain resistance, due to its 800 V (!) rating:

W7NB80-overview

W7NB80-overview

Hold the gate voltage constant at 10.0 V and step the temperature from 0 °C to 50 °C:

W7NB80-Temp

W7NB80-Temp

I haven’t figured out how to get the actual temperatures from the Gnuplot input dataset to the graph without knowing them in advance. The “index” is simply the 0-origin block number, which conveniently (and coincidentally) lines up with the 0 °C to 50 °C temperature range.

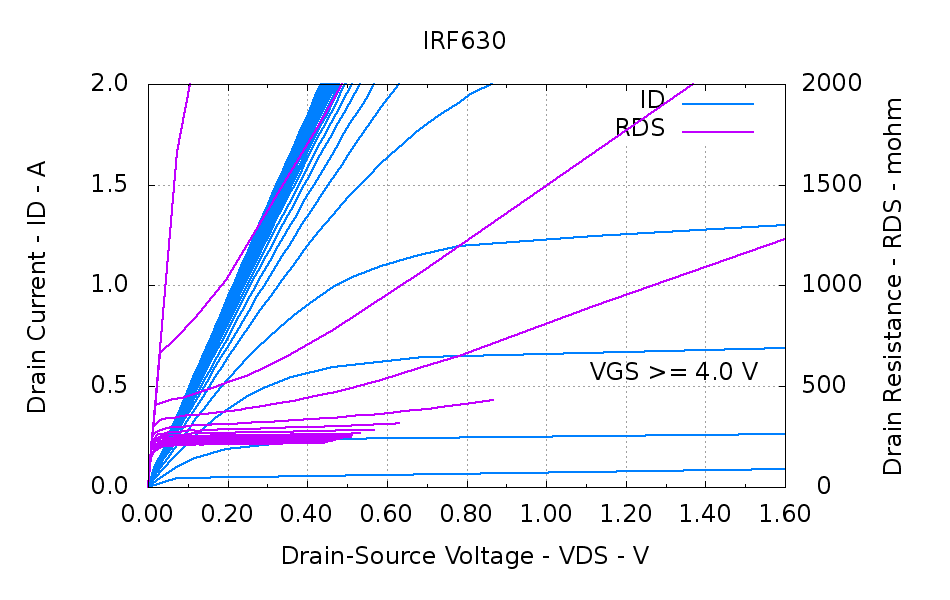

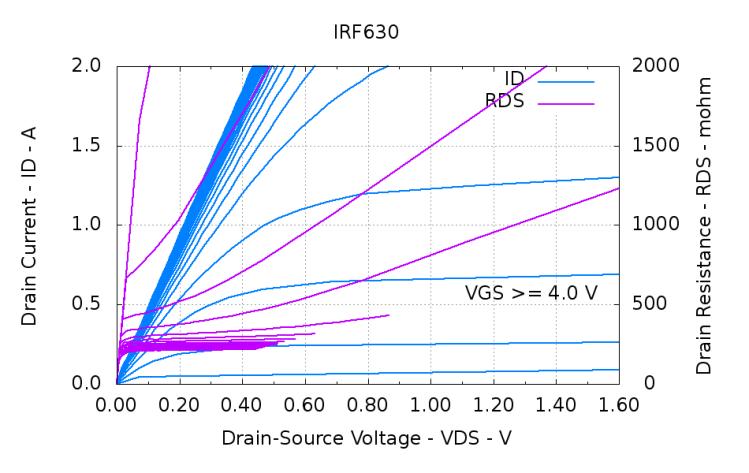

An overview of a 400 m 200 V IRF630:

IRF630-overview

IRF630-overview

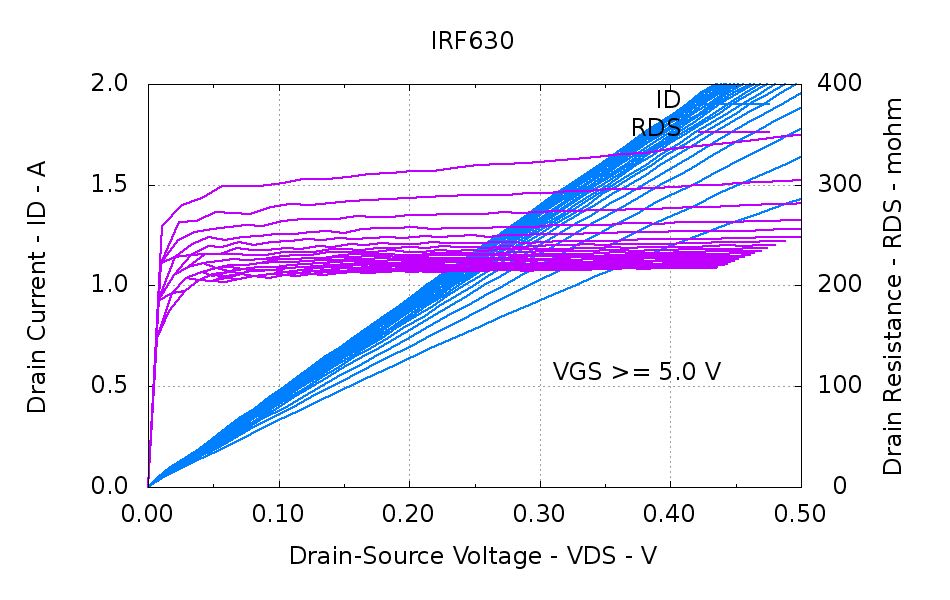

The juicy part:

IRF630-detail

IRF630-detail

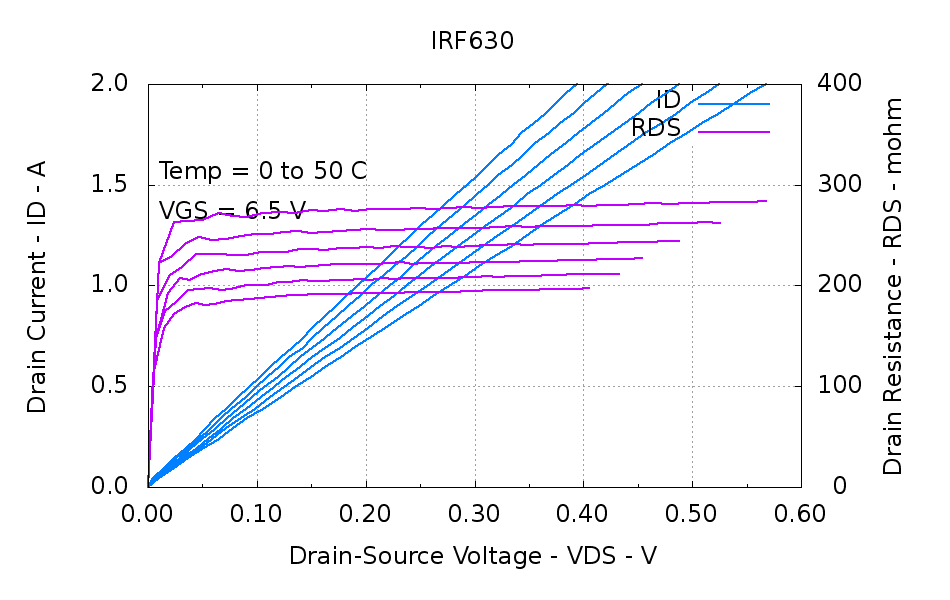

And the variations with temperature:

IRF630-Temp

IRF630-Temp

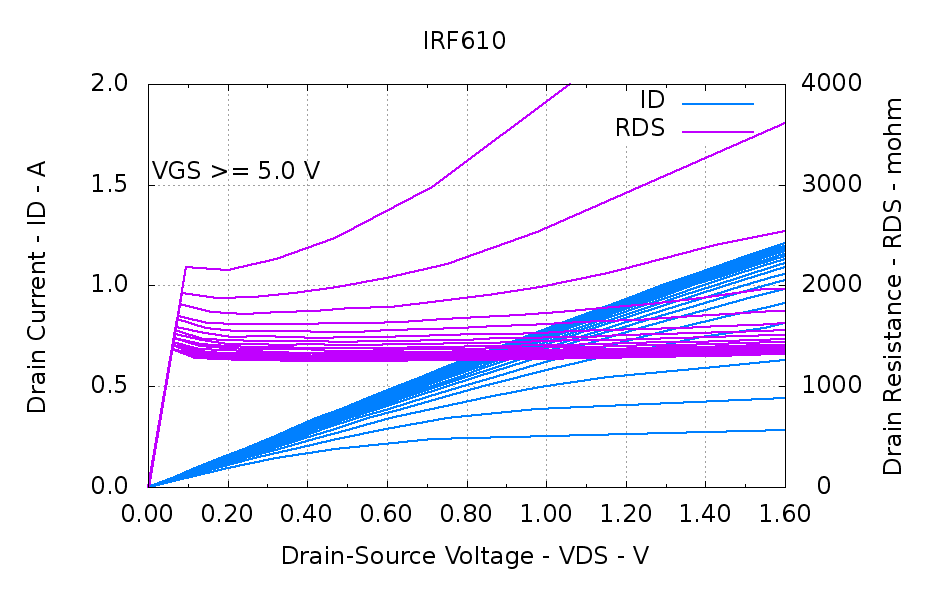

A 1.5  200 V IRF610, another high-resistance transistor:

IRF610-overview

IRF610-overview

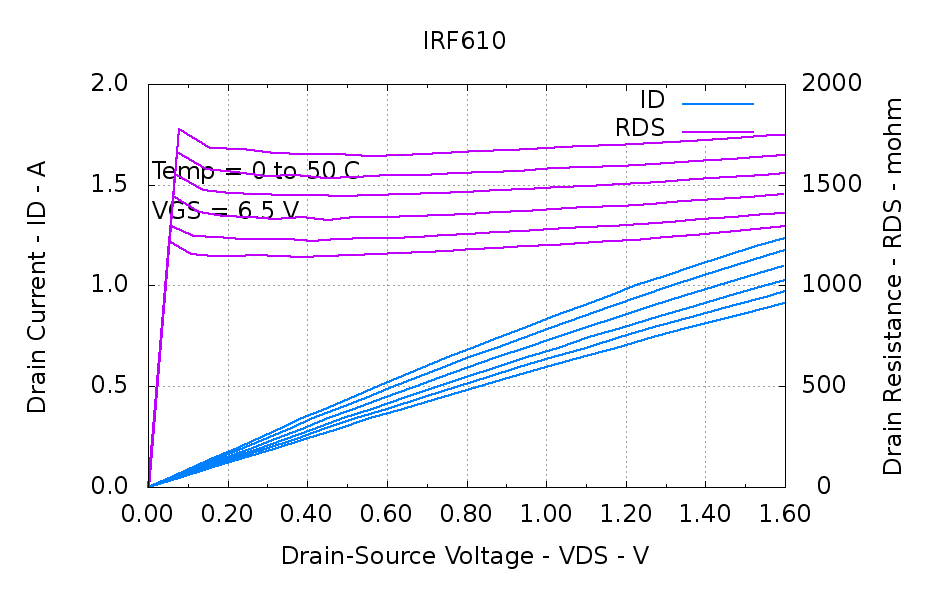

The temperature variations:

IRF610-Temp

IRF610-Temp

The winning entry for high resistance, though, is the 500 Ω (!!!) BSS127 that emerged from a paper on current sensing using mirror FETs for temperature compensation. It has a 600 V rating, but I have no idea why such a high drain resistance makes any sense in a SOT-23 package. They’re obsolescent and I won’t buy any just to have ‘em around.

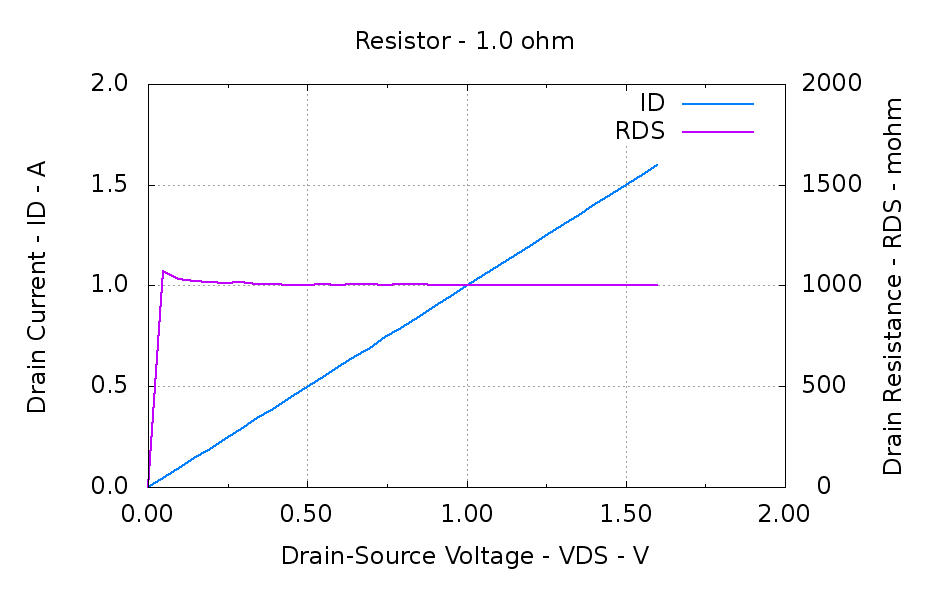

Just for completeness, a 1  1% resistor:

Resistor - 1.0 ohm

Resistor - 1.0 ohm

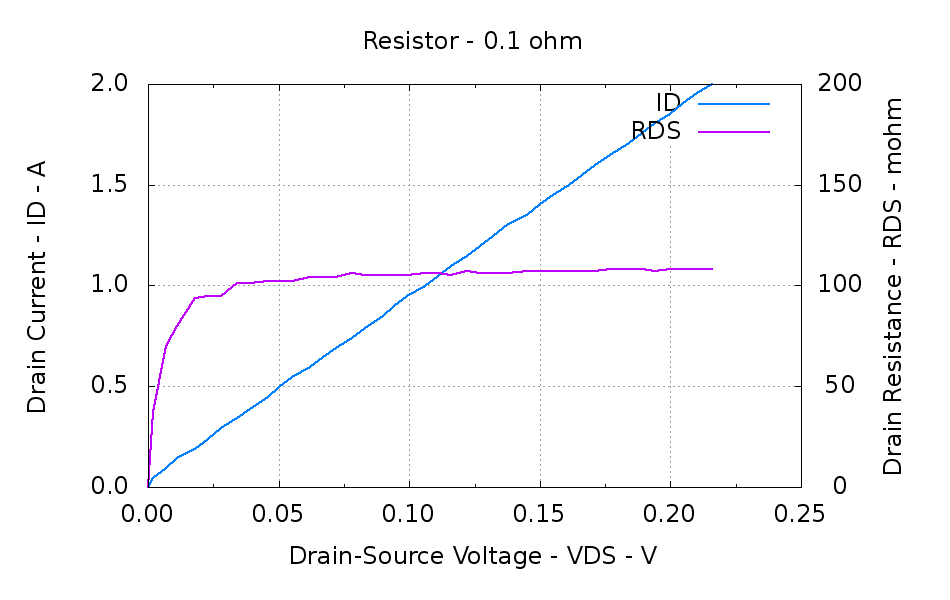

And a 100 m 1% resistor:

Resistor - 0.1 ohm

Resistor - 0.1 ohm

It turns out that the wire leads I soldered on contributed 6 m to the total, so the tester actually reports the truth! I checked that by passing 1.000 A through the resistor, which put 100 mV at the base of the resistor pins, then measuring 106 mV at the end of the wire leads. One can quibble about voltmeter accuracy, but it’s pretty close and much better than the ohmmeter accuracy at that resistance.

The firmware forces 0.0  for drain current identically equal to 0.0 (it’s a floating point number cast from a 10-bit unsigned integer) to avoid numeric explosions. The next few points away from the origin show the effect of small errors on small measurements; the voltage resolution is 15 mV and the current resolution is 2.5 mA; you can actually see the steps near the origin.

All in all, a fun project…

Need the datasheets? Ask your favorite search engine for, say, IRF610 datasheet. That should do the trick.

About these ads
