Dishwasher Rack Protectors

After a decade of stacking the plates in the dishwasher the same way every time, the flexible coating over the steel rods has worn through:

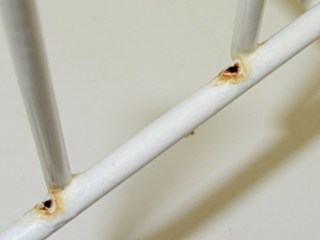

Dishwasher rack abrasion

Dishwasher rack abrasion

We can’t stack them the other way, because the rotor spray rattles them unmercifully, and a fix is in order. Apparently, one can purchase touchup paint for this very purpose, but what’s the fun in that? Besides, I’d expect it to wear through even faster than the original coating, if only because adhesion is never as good as you’d expect from reading the label.

So this little dingus fits around a vertical pin and rests atop the horizontal rod, with the edge of the plate nestled into the joint between the two cylinders:

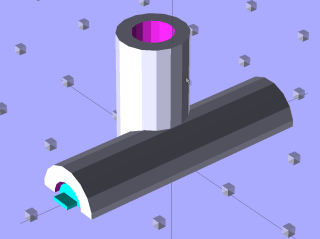

Dishwasher rack protector - solid model

Dishwasher rack protector - solid model

Being very small, they build best in large groups:

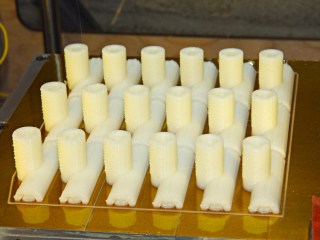

Dishwasher rack protectors - on build platform

Dishwasher rack protectors - on build platform

The horizontal half-cylinders require internal support, shown here adjacent to the protector for easy viewing:

Dishwasher rack protector - support model

Dishwasher rack protector - support model

Those fins just barely clear the interior of the horizontal cylinder, so the two parts don’t bond together very well (that’s the ideal condition, of course). The flat plate glues the support fins firmly to the build platform, which is easier to see on these somewhat shorter prototypes with a layer or two of orange filament on their bottoms:

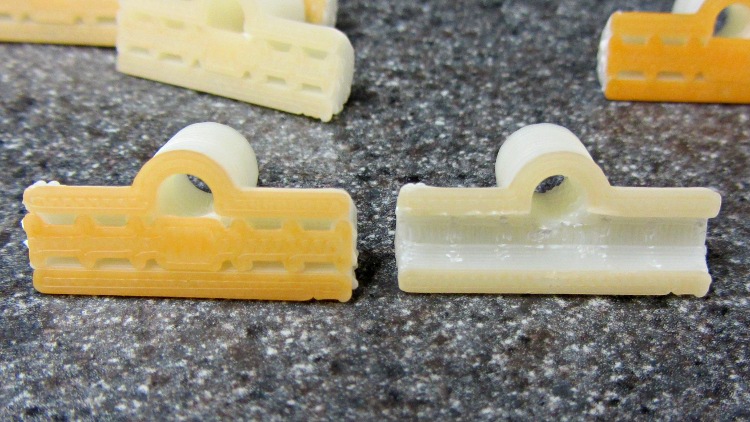

Dishwasher rack protectors - support

Dishwasher rack protectors - support

The support chops out neatly with a repurposed nail set punch:

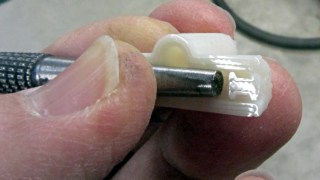

Dishwasher rack protector - removing support

Dishwasher rack protector - removing support

Actually, I stood each one vertically on an aluminum chunk, held the punch in place with finger pressure, and whacked it with a small brass hammer. The OpenSCAD code now adds a small tab each end to help align the punch for the first whack.

The rod (vertical) hole came out just about exactly the right size (admittedly, with a 0.4 mm HoleFinagle adjustment), but required a pass with a drill in a pin vise to clear out the Reversal Zittage. The result slides easily over undamaged pins, but some pins had rust at either the top or bottom that required a bit of cleanup. This is a trial fit:

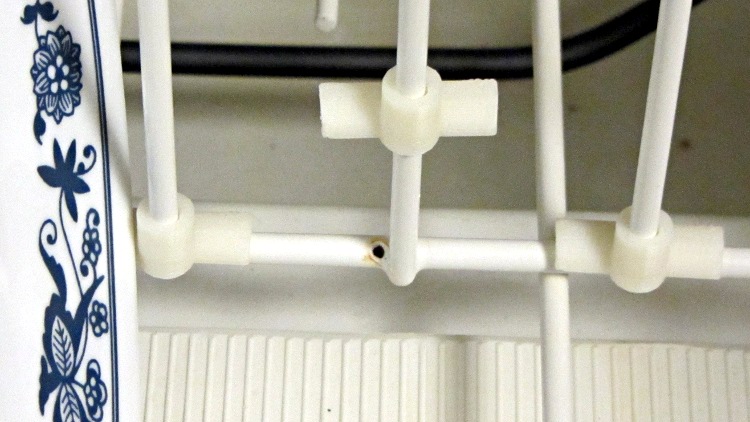

Dishwasher rack protectors - trial fit

Dishwasher rack protectors - trial fit

I put a blob of acrylic caulk on the abraded spots to (attempt to) seal them from further damage, then squished the protectors in place. The dishwasher demonstrated that it’s perfectly capable of blasting an unglued protector (without a plate) up and off the pin, ingesting it into the trash grinder, chewing it up, and spitting the pieces down the drain. Lost a couple of prototypes before I figured that out, too.

Ya learn something new every day…

The OpenSCAD source code:

// Dishwasher rack protector
// Ed Nisley KE4ZNU - Jan 2012

Layout = "Show";                    // Show Build Support

Support = true;                     // true to add support inside rod half-cylinder

include </home/ed/Thing-O-Matic/lib/visibone_colors.scad>

//-------
//- Extrusion parameters must match reality!
//  Print with +0 shells
//  Infill = 1.0, line, perpendicular to Bar axis on first bridge layer
//  Multiply = at least four copies to prevent excessive slowdown

ThreadThick = 0.25;
ThreadWidth = 2.0 * ThreadThick;

HoleFinagle = 0.4;
HoleFudge = 1.00;

function HoleAdjust(Diameter) = HoleFudge*Diameter + HoleFinagle;

Protrusion = 0.1;           // make holes end cleanly

function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
function IntegerMultipleMin(Size,Unit) = Unit * floor(Size / Unit);

//-------
// Dimensions

PinDia = 4.0 + 0.5;                 // upright pin diameter + clearance
PinRadius = PinDia/2;

PinSpace = 35.0;                    // pin spacing along bar

PinOC = 3.4;                        // bar center to pin center

PinTubeLength = 15.0;               // length of upright tube along pin

BarDia = 4.7 + 0.2;                 // horizontal bar diameter + clearance
BarRadius = BarDia/2;

BarTubeLength = PinSpace - 5.0;     // length of horizontal half tube along bar

TubeWall = 4*ThreadWidth;           // wall thickness -- allow for fill motion

TubeSides = 4 * 4;                  // default side count for tubes (in quadrants)
$fn = TubeSides;

SupportClear = 0.85;                // support structure clearance fraction

//-------

module PolyCyl(Dia,Height,ForceSides=0) {           // based on nophead's polyholes
  Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
  FixDia = Dia / cos(180/Sides);
  cylinder(r=HoleAdjust(FixDia)/2,h=Height,$fn=Sides);
}

module ShowPegGrid(Space = 10.0,Size = 1.0) {

  Range = floor(50 / Space);
  for (x=[-Range:Range])
    for (y=[-Range:Range])
      translate([x*Space,y*Space,Size/2])
        %cube(Size,center=true);
}

//--------
// Support under bar tube shells

module SupportStructure() {

  color("cyan")
  difference() {
    union() {
      for (Index=[-4:4])
        translate([Index*(BarTubeLength/8.5),0,0])
          rotate([0,90,0])
            rotate(180/TubeSides)
              cylinder(r=SupportClear*BarRadius,h=2*ThreadWidth,center=true);

      rotate([0,90,0])
        rotate(180/TubeSides)
          cylinder(r=SupportClear*BarRadius,h=10*ThreadWidth,center=true);

      translate([0,0,ThreadThick])
        cube([(BarTubeLength + 4*ThreadWidth),BarRadius,2*ThreadThick],center=true);
    }

    translate([0,0,-(BarRadius + Protrusion)/2])
      cube([(BarTubeLength + 2*Protrusion),
          BarDia,
          (BarRadius + Protrusion)],center=true);

  }

}

//-------
// Put it together

module Protector() {

  difference() {
    union() {
      translate([0,PinOC,0])
        rotate(180/TubeSides)
          cylinder(r=(PinDia + 2*TubeWall)/2,h=PinTubeLength);
      translate([-BarTubeLength/2,0,0])
        rotate([0,90,0])
          rotate(180/TubeSides)
            cylinder(r=(BarDia + 2*TubeWall)/2,h=BarTubeLength);
    }

    translate([0,PinOC,-Protrusion])
      rotate(180/TubeSides)
        PolyCyl(PinDia,(PinTubeLength + 2*Protrusion),TubeSides);

    translate([-BarTubeLength/2,0,0])
      rotate([0,90,0])
        rotate(180/TubeSides)
          translate([0,0,-Protrusion])
            cylinder(r=BarRadius,h=(BarTubeLength + 2*Protrusion));

    translate([0,0,-(BarRadius + TubeWall + Protrusion)/2])
      cube([(BarTubeLength + 2*Protrusion),
          BarTubeLength,
          (BarRadius + TubeWall + Protrusion)],center=true);
  }

}

//-------
// Build it!

ShowPegGrid();

if (Layout == "Support")
  SupportStructure();

if (Layout == "Show") {
  Protector();
  translate([0,-10,0])
    SupportStructure();
}

if (Layout == "Build")
  rotate(90) {
    if (Support)
      SupportStructure();
    Protector();
  }
About these ads

,

  1. #1 by Jason Doege on 2012-01-16 - 12:17

    That’s brilliant. Sell those in blister packs in grocery stores.

    • #2 by Ed on 2012-01-16 - 15:51

      blister packs in grocery stores

      Gotta build me a bot farm, yes I must…

      • #3 by Jason Doege on 2012-01-17 - 10:49

        I suspect economics will suggest injection molding would provide a better profit margin than using 3-d printing for manufacturing.

        • #4 by Ed on 2012-01-17 - 12:12

          injection molding would provide a better profit margin

          Which explains why MBI uses such parts inside a 3D printer: it makes no sense to use expensive and fiddly printers (and operators!) for mass-produced parts. Prototypes: yup. Production: nope.

          On the other paw, that build plate full of protectors was half of my production run… [grin]

  2. #5 by Keith Neufeld on 2012-01-16 - 20:24

    Ed, I was skeptical too, but have had unexpectedly good luck with Performix ReRack. I wire-brushed the rust out, touched up all the spots in the same places you have plus various chips on the pins, and let it cure, and it’s doing fine. You might try ReRack for the tops of the pins — although of course you could design caps for them as well.

    I do love your dishwasher shinguards, though! :-)

    • #6 by Ed on 2012-01-16 - 21:28

      wire-brushed the rust out

      Good surface preparation is always the key!

      Next trip out, I’ll pick up a bottle and try it on the pin tips, because there really isn’t enough room for a fancy cap up there. Not to mention that we’re sure they’d wind up in the trash grinder after a while, no matter how much adhesive I apply.

      If the rack survives another decade, the rest of the dishwasher will be junk…

      • #7 by Keith Neufeld on 2012-01-16 - 23:25

        I’ll add that I picked a time I could do without the dishwasher for 24 hours or more and applied many coats of goop.

  3. #8 by John Rehwinkel on 2012-01-17 - 07:54

    I’m having trouble visualizing how the tab on the end of the support helps align the punch.

    • #9 by Ed on 2012-01-17 - 08:38

      A nail set punch has a concave end that fits neatly over the tab, with a fairly sharp edge that lines up nicely around the inside edge of the protector!

      Stand one semicircular end at the edge of a hole in the aluminum block, put the concave end of the punch over the tab with the edge of the punch lined up with the edge of the support, and give it a whack: the support should pop out.

      Admittedly, when the support didn’t pop out, then I had to chop it out in sections, using the punch as a circular chisel… a process that would have gone much better with three hands.
